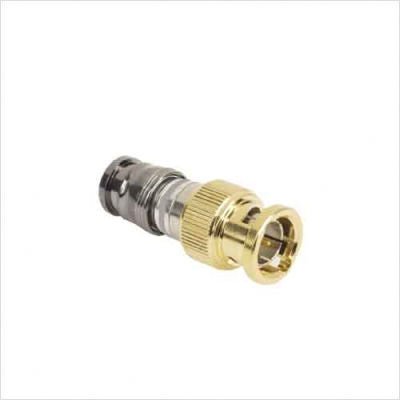

ConnecTec BNC RG6 CCTV Gold

[Music] [Music] how to terminate an rg6 BNC type coaxial compression connector materials required rg6 BNC coaxial compression connector side cutter coaxial cable prep tool universal coaxial compression tool and the RG 6 coaxial cable step 1 cut the specified length of RG 6 coaxial cable and insert three quarters of an inch into the coaxial cable prep tool rotate in one direction two to three turns step two the coaxial cable will be scored in two stages remove the first stage exposing the center conductor remove the second stage exposing the foam insulation and steel braid fold back the steel braid towards the coaxial cable trim the center conductor a quarter of an inch using the side cutters [Music] step 3 insert the coaxial cable into the RG 6 BNC coaxial compression connector ensure the center conductor is kept straight while firmly pushing into the compression connector step 4 select
