Description
Specification:
Eyepiece: Large field of view WF10X (Φ18mm)
Objective lens:
Long-range plan achromatic objective lens (without cover glass) PL 5X/0.12
Long-range plan achromatic objective lens (without cover glass) PL L10X/0.25
Long-range plan achromatic objective lens (without cover glass) PL L20X/0.40
Long-range plan achromatic objective lens (without cover glass) PL L40X/0.60
Long-range plan achromatic objective lens (without cover glass) PL L60X/0.75 (spring)
Eyepiece tube: Trinoculars, tilted 30 ̊, (built-in polarizer, switchable)
Epi-illumination system:
6V 20W halogen lamp with adjustable brightness
Epi-illuminator with field diaphragm, aperture diaphragm, polarizer, (yellow, blue, green) filter and frosted glass
Focusing mechanism: coarse and fine motion coaxial focusing, micro-motion value: 2μm, coarse and elastic adjustable, with locking and limit device
Converter: Four holes (inward ball positioning)
Stage: Double-layer mechanical moving type (size: 185mmX140mm, moving range: 75mmX50mm)
Transmission lighting system:
Abbe condenser NA.1.25 can be raised and lowered
Blue filter and frosted glass
Light collector, halogen lamp
6V 20W halogen lamp with adjustable brightness

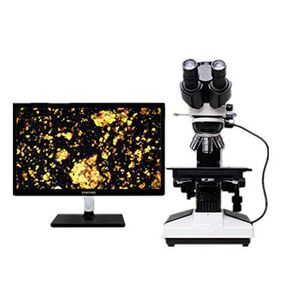

Coosway CSW-2003A 4800x Magnification Photographable Measurement Analysis Metallographic Microscope
Current Price
$1 319.99
Average
$1 319.99
Min Price
$1 319.99
Max Price
$1 319.99
Description
Specification:
Eyepiece: Large field of view WF10X (Φ18mm)
Objective lens:
Long-range plan achromatic objective lens (without cover glass) PL 5X/0.12
Long-range plan achromatic objective lens (without cover glass) PL L10X/0.25
Long-range plan achromatic objective lens (without cover glass) PL L20X/0.40
Long-range plan achromatic objective lens (without cover glass) PL L40X/0.60
Long-range plan achromatic objective lens (without cover glass) PL L60X/0.75 (spring)
Eyepiece tube: Trinoculars, tilted 30 ̊, (built-in polarizer, switchable)
Epi-illumination system:
6V 20W halogen lamp with adjustable brightness
Epi-illuminator with field diaphragm, aperture diaphragm, polarizer, (yellow, blue, green) filter and frosted glass
Focusing mechanism: coarse and fine motion coaxial focusing, micro-motion value: 2μm, coarse and elastic adjustable, with locking and limit device
Converter: Four holes (inward ball positioning)
Stage: Double-layer mechanical moving type (size: 185mmX140mm, moving range: 75mmX50mm)
Transmission lighting system:
Abbe condenser NA.1.25 can be raised and lowered
Blue filter and frosted glass
Light collector, halogen lamp
6V 20W halogen lamp with adjustable brightness
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
