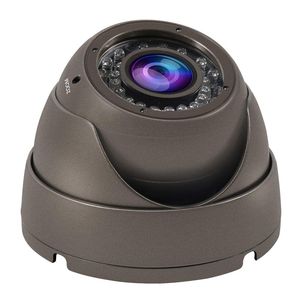

HD-SDI waterproof dome camera, using 1/2.8" 2M CMOS sensor,DC 12V voltage supply,36 LED lights,supports IR night vision .
It is widely used in supermarkets, offices, factories, hotels, homes, School and other occasions.
Cautions:
1.Please don't touch the sensor and lens with your hand.
2.Please don't install the camera in following unstable conditions:
shake, extremely hot,extremely cold etc.
3.The recommended conditions of the installation are temperature
from -10 to 50℃and moisture under 85%.
4.Please kindly contact your sales person in case you have any
question on assembly or installation.
Specifications:
Image sensor: 1/2.8" 2M CMOS sensor(MN24227PL)
Effective Pixels:1920*1080/2MP
Resolution:1080P 25/30F
Built-in Lens:2.8-12mm 3 Mega Pixels Lens
Signal System:PAL/NTSC
Sync. System:Internal Sync.
Sensor Area:4.8mmx3.6mm
Video Output:1.0Vp~p75Ω
S/N Ratio:More than 50dB (AGC OFF)
White Balance:Auto Tracking White Balance
Weather-proof:IP66
Shutter Speed:1/50(1/60)~100,000Sec.
Iinfrared Lamps:Night/Day ON/OFF
llumination for Infrared Switching:1 Lux
Infrared Wavelength:850nm
Mimimum Illumination:0Lux(Infrared Lamps Turn on)
IR Leds:36pcs
IR Radiation Distance:50m
Working Temperature: -10℃~50℃
Storage Temperature: -20℃~60℃
Power Requirement:DC12V
Package Iclude:
1pc HD-SDI 1080P Camera
1pc Manual Instruction
1pack screw fitting
CrazyFire HD-SDI Dome Security Camera Outdoor/Indoor Surveillance Camera 36 LED ICR Day and Night Vision IP66 Waterproof CCTV Camera with 2.8-12mm Zoom Lens
HD-SDI waterproof dome camera, using 1/2.8" 2M CMOS sensor,DC 12V voltage supply,36 LED lights,supports IR night vision .
It is widely used in supermarkets, offices, factories, hotels, homes, School and other occasions.
Cautions:
1.Please don't touch the sensor and lens with your hand.
2.Please don't install the camera in following unstable conditions:
shake, extremely hot,extremely cold etc.
3.The recommended conditions of the installation are temperature
from -10 to 50℃and moisture under 85%.
4.Please kindly contact your sales person in case you have any
question on assembly or installation.
Specifications:
Image sensor: 1/2.8" 2M CMOS sensor(MN24227PL)
Effective Pixels:1920*1080/2MP
Resolution:1080P 25/30F
Built-in Lens:2.8-12mm 3 Mega Pixels Lens
Signal System:PAL/NTSC
Sync. System:Internal Sync.
Sensor Area:4.8mmx3.6mm
Video Output:1.0Vp~p75Ω
S/N Ratio:More than 50dB (AGC OFF)
White Balance:Auto Tracking White Balance
Weather-proof:IP66
Shutter Speed:1/50(1/60)~100,000Sec.
Iinfrared Lamps:Night/Day ON/OFF
llumination for Infrared Switching:1 Lux
Infrared Wavelength:850nm
Mimimum Illumination:0Lux(Infrared Lamps Turn on)
IR Leds:36pcs
IR Radiation Distance:50m
Working Temperature: -10℃~50℃
Storage Temperature: -20℃~60℃
Power Requirement:DC12V
Package Iclude:
1pc HD-SDI 1080P Camera
1pc Manual Instruction
1pack screw fitting
