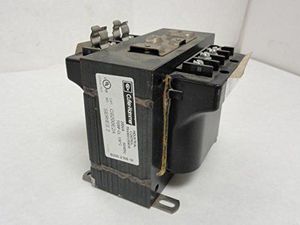

Cutler-Hammer C0200E2A Control Transformer, 200vA, 240/480V
Current Price
$33.11
Average
$33.11
Min Price
$33.11
Max Price
$33.11
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
Product review & video
[MUSIC PLAYING] One of the most common and popular
transformer types in use today are the single-phase units with a 480-volt
by 240-volt primary and a 240/120-volt secondary. We're going to examine the wiring for
an epoxy encapsulated transformer here, but the H connections and X connections
will be the same across all transformer sizes and wiring types. All such transformers have four H
connections and four X connections. On this particular transformer
the H wires are black. The X wires are red. This coloring is visually convenient
but is not always the case. Sometimes all wires are black,
sometimes all are red, and so forth. We're going to start with the very
popular 480-volt input on the primary. We're going to connect H2 and
H3 together and tie them up with a very common wire nut, which
leaves H1 and H4 as our 480-volt input. So one line of 480 volts will come in
on H4, and the othe
