Description
Camera
Image Sensor:1/2.8" STARVIS CMOS
Effective Pixels:1920(H) x 1080(V), 2 Megapixels
RAM/ROM:512M/128M
Electronic Shutter Speed:1/1s~1/30,000s
Scanning System:Progressive
Minimum Illumination:Color: 0.005Lux@F1.6; 0Lux@F1.6 (IR on)
S/N Ratio:More than 50dB
IR Distance:Distance up to 15m (49.2ft)
IR On/Off Control:Auto/Manual
IR LEDs:3
Lens
Focal Length:2.7mm~8.1mm
Max. Aperture:F1.8
Angle of View:H: 105.6° ~ 35.2°
Optical Zoom:3x
Focus Control:Auto/Manual
Close Focus Distance:100mm~ 1000mm
PTZ
Pan/Tilt Range :Pan: 0° ~ 355°; Tilt: 5° ~ 90°
Manual Control Speed : Pan: 0.1° ~70° /s; Tilt: 0.1° ~30° /s
Preset Speed:Pan: 80° /s; Tilt: 40° /s
Presets:300
PTZ Mode:8 Tour
Speed Setup:Human-oriented focal Length/ speed adaptation
Power up Action:Auto restore to previous PTZ and lens status after power failure
Idle Motion:Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
Protocol:DH-SD
Intelligence
Auto Tracking:N/A
IVS:Tripwire, Intrusion,Abandoned/Missing, Face Detection
Network
Ethernet:RJ-45 (10/100Base-T)
Wi-Fi:N/A
Protocol :
IPv4/IPv6,HTTP,HTTPS,SSL,TCP/IP, UDP,UPnP,ICMP,IGMP,SNMP,RTSP,RTP, SMTP, NTP,DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
Interoperability:ONVIF, PSIA, CGI
Streaming Method:Unicast / Multicast
Max. User Access:20 Users
Edge Storage :NAS (Network Attached Storage),Local PC for instant recording, Micro SD card 256GB
Web Viewer:IE, Chrome, Firefox, Safari
Management Software:Smart PSS, DSS
Smart Phone:IOS, Android
Electrical
Power Supply:DC 12V/1.5A, PoE(802.3af)
Power Consumption:7.8W, 10.5W (IR on)
Image Sensor:1/2.8" STARVIS CMOS
Effective Pixels:1920(H) x 1080(V), 2 Megapixels
RAM/ROM:512M/128M
Electronic Shutter Speed:1/1s~1/30,000s
Scanning System:Progressive
Minimum Illumination:Color: 0.005Lux@F1.6; 0Lux@F1.6 (IR on)
S/N Ratio:More than 50dB
IR Distance:Distance up to 15m (49.2ft)
IR On/Off Control:Auto/Manual
IR LEDs:3
Lens
Focal Length:2.7mm~8.1mm
Max. Aperture:F1.8
Angle of View:H: 105.6° ~ 35.2°
Optical Zoom:3x
Focus Control:Auto/Manual
Close Focus Distance:100mm~ 1000mm
PTZ
Pan/Tilt Range :Pan: 0° ~ 355°; Tilt: 5° ~ 90°
Manual Control Speed : Pan: 0.1° ~70° /s; Tilt: 0.1° ~30° /s
Preset Speed:Pan: 80° /s; Tilt: 40° /s
Presets:300
PTZ Mode:8 Tour
Speed Setup:Human-oriented focal Length/ speed adaptation
Power up Action:Auto restore to previous PTZ and lens status after power failure
Idle Motion:Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
Protocol:DH-SD
Intelligence
Auto Tracking:N/A
IVS:Tripwire, Intrusion,Abandoned/Missing, Face Detection
Network
Ethernet:RJ-45 (10/100Base-T)
Wi-Fi:N/A
Protocol :
IPv4/IPv6,HTTP,HTTPS,SSL,TCP/IP, UDP,UPnP,ICMP,IGMP,SNMP,RTSP,RTP, SMTP, NTP,DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
Interoperability:ONVIF, PSIA, CGI
Streaming Method:Unicast / Multicast
Max. User Access:20 Users
Edge Storage :NAS (Network Attached Storage),Local PC for instant recording, Micro SD card 256GB
Web Viewer:IE, Chrome, Firefox, Safari
Management Software:Smart PSS, DSS
Smart Phone:IOS, Android
Electrical
Power Supply:DC 12V/1.5A, PoE(802.3af)
Power Consumption:7.8W, 10.5W (IR on)

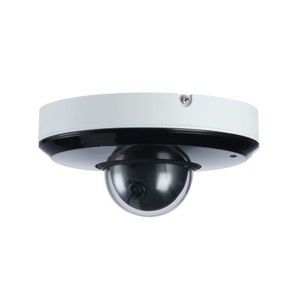

EmpireTech IP Camera SD1A203T-GN 2MP 3x Starlight IR PTZ Network Camera Support PoE English Version
Price is below average
Current Price
$179.99
Average
$191.66
Min Price
$179.99
Max Price
$249.99
Price dynamics
6%
Description
Camera
Image Sensor:1/2.8" STARVIS CMOS
Effective Pixels:1920(H) x 1080(V), 2 Megapixels
RAM/ROM:512M/128M
Electronic Shutter Speed:1/1s~1/30,000s
Scanning System:Progressive
Minimum Illumination:Color: 0.005Lux@F1.6; 0Lux@F1.6 (IR on)
S/N Ratio:More than 50dB
IR Distance:Distance up to 15m (49.2ft)
IR On/Off Control:Auto/Manual
IR LEDs:3
Lens
Focal Length:2.7mm~8.1mm
Max. Aperture:F1.8
Angle of View:H: 105.6° ~ 35.2°
Optical Zoom:3x
Focus Control:Auto/Manual
Close Focus Distance:100mm~ 1000mm
PTZ
Pan/Tilt Range :Pan: 0° ~ 355°; Tilt: 5° ~ 90°
Manual Control Speed : Pan: 0.1° ~70° /s; Tilt: 0.1° ~30° /s
Preset Speed:Pan: 80° /s; Tilt: 40° /s
Presets:300
PTZ Mode:8 Tour
Speed Setup:Human-oriented focal Length/ speed adaptation
Power up Action:Auto restore to previous PTZ and lens status after power failure
Idle Motion:Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
Protocol:DH-SD
Intelligence
Auto Tracking:N/A
IVS:Tripwire, Intrusion,Abandoned/Missing, Face Detection
Network
Ethernet:RJ-45 (10/100Base-T)
Wi-Fi:N/A
Protocol :
IPv4/IPv6,HTTP,HTTPS,SSL,TCP/IP, UDP,UPnP,ICMP,IGMP,SNMP,RTSP,RTP, SMTP, NTP,DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
Interoperability:ONVIF, PSIA, CGI
Streaming Method:Unicast / Multicast
Max. User Access:20 Users
Edge Storage :NAS (Network Attached Storage),Local PC for instant recording, Micro SD card 256GB
Web Viewer:IE, Chrome, Firefox, Safari
Management Software:Smart PSS, DSS
Smart Phone:IOS, Android
Electrical
Power Supply:DC 12V/1.5A, PoE(802.3af)
Power Consumption:7.8W, 10.5W (IR on)
Image Sensor:1/2.8" STARVIS CMOS
Effective Pixels:1920(H) x 1080(V), 2 Megapixels
RAM/ROM:512M/128M
Electronic Shutter Speed:1/1s~1/30,000s
Scanning System:Progressive
Minimum Illumination:Color: 0.005Lux@F1.6; 0Lux@F1.6 (IR on)
S/N Ratio:More than 50dB
IR Distance:Distance up to 15m (49.2ft)
IR On/Off Control:Auto/Manual
IR LEDs:3
Lens
Focal Length:2.7mm~8.1mm
Max. Aperture:F1.8
Angle of View:H: 105.6° ~ 35.2°
Optical Zoom:3x
Focus Control:Auto/Manual
Close Focus Distance:100mm~ 1000mm
PTZ
Pan/Tilt Range :Pan: 0° ~ 355°; Tilt: 5° ~ 90°
Manual Control Speed : Pan: 0.1° ~70° /s; Tilt: 0.1° ~30° /s
Preset Speed:Pan: 80° /s; Tilt: 40° /s
Presets:300
PTZ Mode:8 Tour
Speed Setup:Human-oriented focal Length/ speed adaptation
Power up Action:Auto restore to previous PTZ and lens status after power failure
Idle Motion:Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
Protocol:DH-SD
Intelligence
Auto Tracking:N/A
IVS:Tripwire, Intrusion,Abandoned/Missing, Face Detection
Network
Ethernet:RJ-45 (10/100Base-T)
Wi-Fi:N/A
Protocol :
IPv4/IPv6,HTTP,HTTPS,SSL,TCP/IP, UDP,UPnP,ICMP,IGMP,SNMP,RTSP,RTP, SMTP, NTP,DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
Interoperability:ONVIF, PSIA, CGI
Streaming Method:Unicast / Multicast
Max. User Access:20 Users
Edge Storage :NAS (Network Attached Storage),Local PC for instant recording, Micro SD card 256GB
Web Viewer:IE, Chrome, Firefox, Safari
Management Software:Smart PSS, DSS
Smart Phone:IOS, Android
Electrical
Power Supply:DC 12V/1.5A, PoE(802.3af)
Power Consumption:7.8W, 10.5W (IR on)
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
Product review & video
what's going on everyone it's richard with home tech video here to review a dawa three times optical zoom starlight mini pan tilt zoom camera I'll have a link in the description below if you're interested in learning on where to find and buy this one so let's go and jump right in with this review so the first thing that you might notice about this camera is how its designed it's a little bit different than most dome cameras or most pan tilt zoom cameras the lens is on the top surrounded by a fairly wide base the white material is a powdered coated metal finish and on the bottom it does feature a SD card slot with two screws to hold it in place and on the top is a locking screw that holds the base in place for when you're mounting it when you're using this mounting plate just make sure that the tab is facing downward and then towards the camera and then you would align the three screws o
