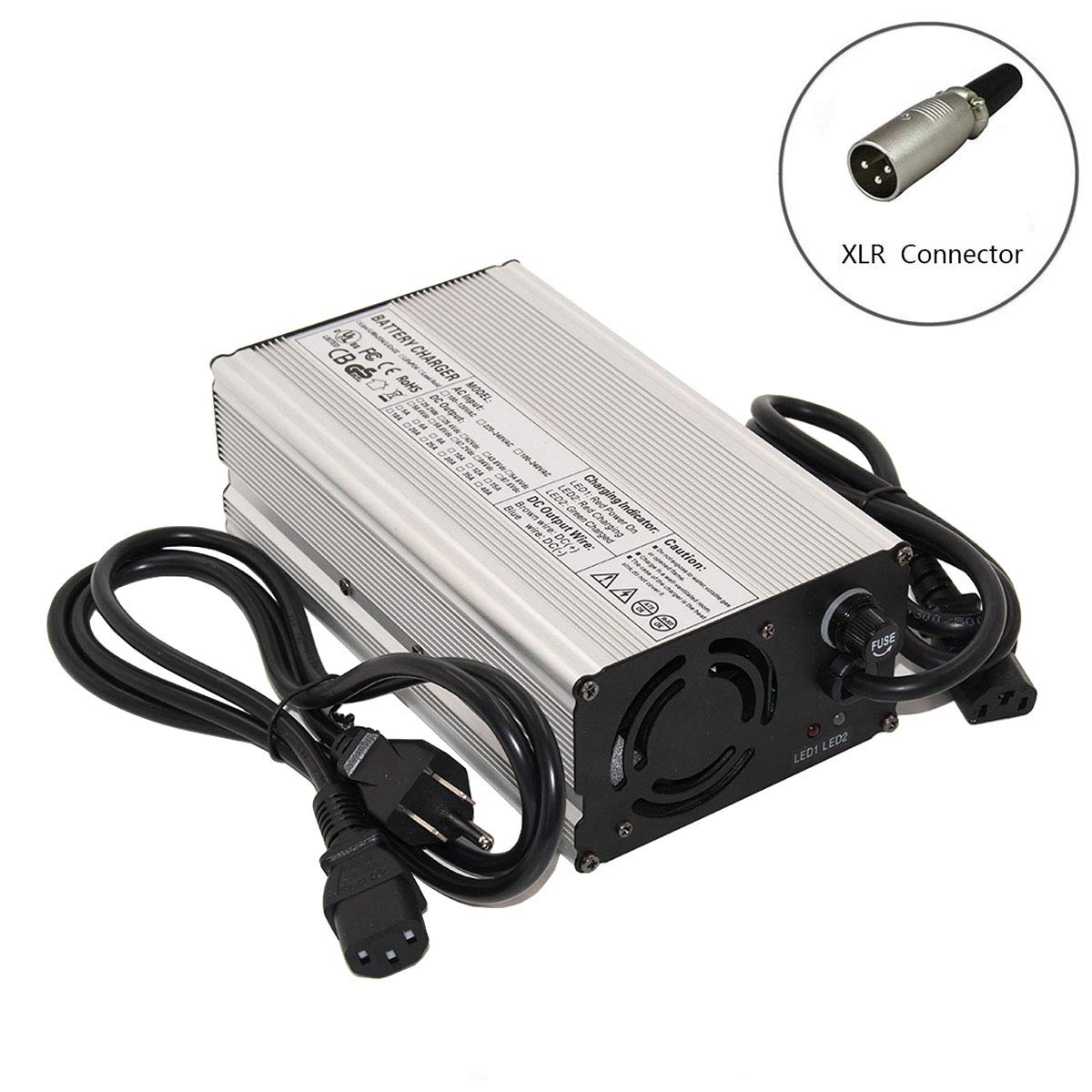

Specification:

Model: YL600

Dimensions: 210x120x70mm

Battery type: Li-ion battery

Working power: 90-230Vac, 50 ~ 60Hz

Suitable for Battery Voltage: 72V

Output voltage: 84V (For 20S Li-ion Battery)

Output current: 6A

battery Protection: SCP,OVP,OCP,OTP

Charging mode: constant current - Constant Voltage - trickle (floating charge) three-stage intelligent charging

Charging efficiency: ≥85% (full load)

Working temperature: -5 ℃ ~ +40 ℃

Storage temperature: -40 ℃ ~ +70 ℃

AC power cord, DC connector can be customized.

Operating Instruction

1. Before charging, please connect the DC terminal to battery first, and then connect the AC terminal.

2. After charging complete, unplug the AC terminal firstly, and then unplug the DC terminal.

3. No charging or after charging complete, be sure to unplug the DC terminal and AC terminal.

LED Indicator:

LED 1 red: Power on.

LED 2 red: Battery being charged.

LED 2 Flash: Battery will be charged completely soon.

LED 2 green: Battery has been charged completely.

Package:

1* 84V 6A charger

1* US standard power cable

1* Operating manual

1* Fuse for replacing
