Descriptions:

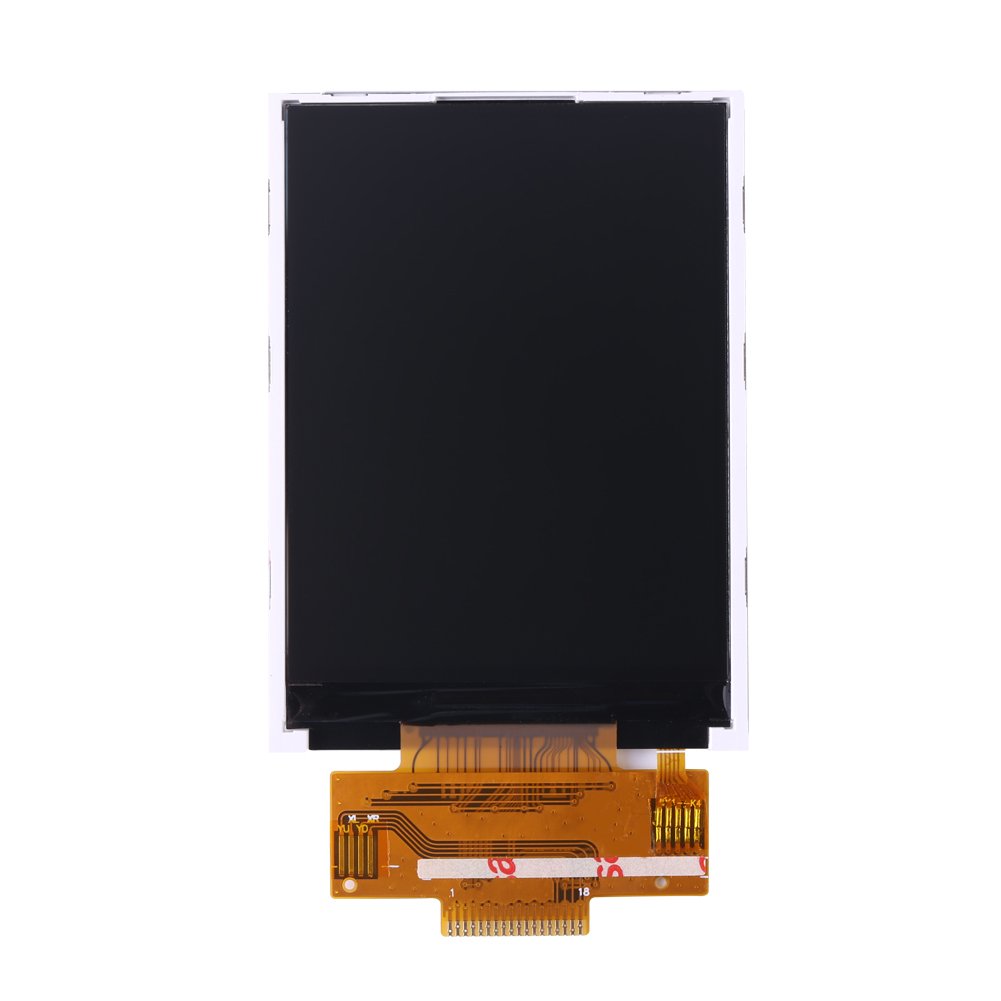

This 2.8" TFT LCD module, 240x320 high resolution, can be can be easy controlled, such as AVR, STM32,It can be used in any embedded systems which require display high quality colorful image.

Features:

2.8" TFT LCD Module, 240x320 High resolution. 2.8inch, 4-wire SPI serial bus,  driver chip is ILI9341.

Material:LCD Screen

Size: 2.8 inch

Control chip: ILI9341

Resolution: 240*320

Display area: 43.20（W）*57.60（H）

Interface type: 4-wire SPI interface

Number of pins: 18pin

Display color: 262K full color

Working temperature: -20~70 degrees

Pixel size: 0.18*0.18 (mm)

Working voltage: 3.3V

Display type: TFT

Weight:16g

Structure:

Package Included:

Note: This model without touch panel
