Camera
Image Sensor:1/2.7" CMOS
Effective Pixels:1920(H)×1080(V), 2MP
Scanning System:Progressive
Electronic Shutter Speed:PAL: 1/25~1/100000s NTSC: 1/30~1/100000s
Minimum Illumination:0.02Lux/F2.0, 30IRE, 0Lux IR on
S/N Ratio:More than 65dB
IR Distance:Up to 30m (98feet)
IR On/Off Control:Auto / Manual
IR LEDs:18
Lens
Lens Type:Fixed lens / Fixed iris
Mount Type:Board-in
Focal Length:3.6mm
Max Aperture:F2.0
Angle of View:H: 87.5°(54.7°)
Focus Control:N/A
Close Focus Distance:900mm (2000mm) 35.43'' (78.74'')
Pan / Tilt / Rotation
Pan/Tilt/Rotation:Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotation: 0° ~ 360°
Video
Resolution:1080P (1920×1080)
Frame Rate;25/30fps@1080P, 25/30/50/60fps@720P
Video Output:1-channel BNC high definition video output / CVBS video output (Can switch)
Day/Night:Auto (ICR) / Manual
OSD Menu:Multi-language
BLC Mode:BLC / HLC / DWDR
WDR:DWDR
Gain Control:AGC
Noise Reduction:2D
White Balance:Auto / Manual
Smart IR:Auto / Manual
Interface
Audio Interface:N/A
Eelectrical
Power Supply:12V DC ±25%
Power Consumption:Max 4.2W (12V DC, IR on)
Environmental
Operating Conditions:-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
* Start up should be done at above -40°C (-40°F)
Storage Conditions:-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
Ingress Protection & Vandal Resistance:IP67
Construction
Casing:Aluminium
Dimensions:164.7mm×70mm×71.6mm (6.48"×2.76"×2.82")
Net Weight:0.35kg (0.77lb)
Gross Weight:0.44kg (0.97lb)

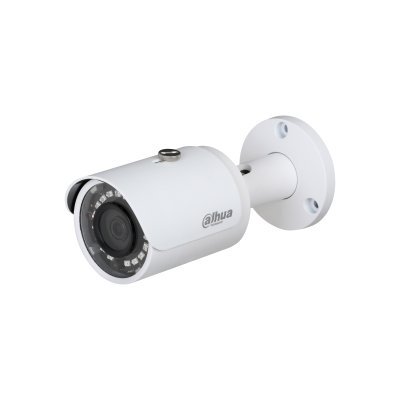

Dahua 2MP HDCVI IR Bullet Camera HAC-HFW1200SP 3.6mm Fixed Lens IR Night Vision IP67 Security Surveillance Camera ONVIF English Version Firmware Upgradeable
Camera
Image Sensor:1/2.7" CMOS
Effective Pixels:1920(H)×1080(V), 2MP
Scanning System:Progressive
Electronic Shutter Speed:PAL: 1/25~1/100000s NTSC: 1/30~1/100000s
Minimum Illumination:0.02Lux/F2.0, 30IRE, 0Lux IR on
S/N Ratio:More than 65dB
IR Distance:Up to 30m (98feet)
IR On/Off Control:Auto / Manual
IR LEDs:18
Lens
Lens Type:Fixed lens / Fixed iris
Mount Type:Board-in
Focal Length:3.6mm
Max Aperture:F2.0
Angle of View:H: 87.5°(54.7°)
Focus Control:N/A
Close Focus Distance:900mm (2000mm) 35.43'' (78.74'')
Pan / Tilt / Rotation
Pan/Tilt/Rotation:Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotation: 0° ~ 360°
Video
Resolution:1080P (1920×1080)
Frame Rate;25/30fps@1080P, 25/30/50/60fps@720P
Video Output:1-channel BNC high definition video output / CVBS video output (Can switch)
Day/Night:Auto (ICR) / Manual
OSD Menu:Multi-language
BLC Mode:BLC / HLC / DWDR
WDR:DWDR
Gain Control:AGC
Noise Reduction:2D
White Balance:Auto / Manual
Smart IR:Auto / Manual
Interface
Audio Interface:N/A
Eelectrical
Power Supply:12V DC ±25%
Power Consumption:Max 4.2W (12V DC, IR on)
Environmental
Operating Conditions:-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
* Start up should be done at above -40°C (-40°F)
Storage Conditions:-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
Ingress Protection & Vandal Resistance:IP67
Construction
Casing:Aluminium
Dimensions:164.7mm×70mm×71.6mm (6.48"×2.76"×2.82")
Net Weight:0.35kg (0.77lb)
Gross Weight:0.44kg (0.97lb)
