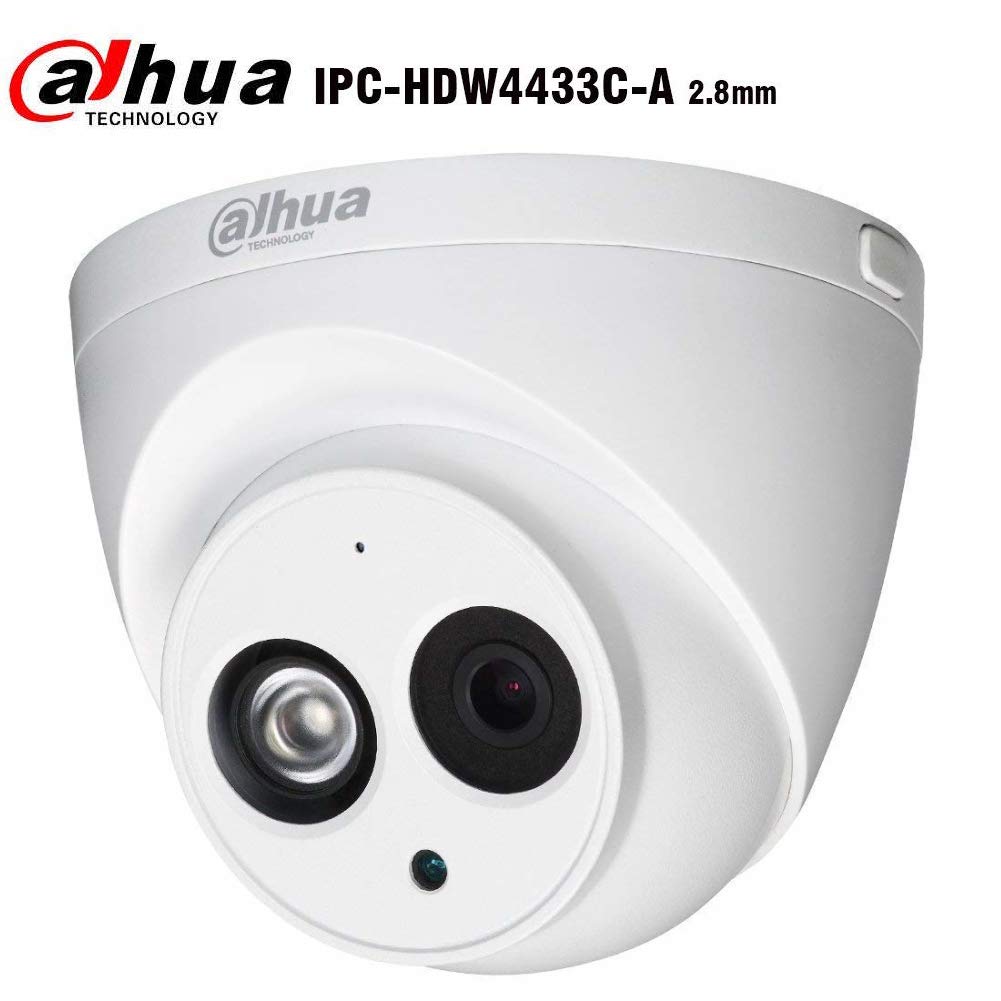

Model: Dahua 4MP PoE IP Camera IPC-HDW4433C-A (2.8mm)
Dahua Camera Features
Max. IR LEDs Length: 50m
Day/Night: Auto(ICR) / Color / B/W
Backlight Compensation: BLC / HLC / DWDR White Balance Auto/Manual
Gain Control: Auto/Manual
Noise Reduction: 3D
Privacy Masking: Up to 4 areas
Image Sensor: 1/3" 4Megapixel progressive CMOS
Effective Pixels: 2688(H)x1520(V)
Scanning System: Progressive
Electronic Shutter Speed: Auto/Manual, 1/3(4)~1/10000s
Min. Illumination: 0.01Lux/F2.0 (Color), 0Lux/F2.0(IR on)
S/N Ratio: More than 50dB
Adjust the angle: Level : 0 ° ~ 360 °; Vertical : 0 ° ~ 65 °
Lens
Fixed lens: 2.8mm
Max Aperture: F2.0
Angle of View: Level:99°, Vertical:58°, Diagonal:116°
Lens Type: Fixed lens
Mount Type: Board-in Type
Video
Compression: H.265; H.264; H.264H; H.264B; MJPEG Frame Rate; Main Stream.
Resolution: 4M(2688x1520)/3M(2304x1296)/1080P(1920x1080)/720P(1280x720)D1(704x576/704x480)/CIF(352x288/352x240)
Audio: Built-in Mic
Main Stream: 4M(1~20fps)/3M(1~25/30fps)
Sub Stream: D1/CIF(1 ~ 25/30fps)
Third Stream: 720P(1-5/8fps)(WDR on) & 720P(1-18/2fps)(WDR off)
Network
Ethernet: RJ-45 (10/100Base-T)
Protocol: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour.
Compatibility: ONVIF, PSIA, CGI
Max. User Access: 20 users
Smart Phone: iPhone, iPad, Android
Auxiliary Interface
RS485: N/A
Alarm: N/A
PIR Sensor Range: N/A
General
Power Supply: DC12V, PoE (802.3af)
Power Consumption: Max 3.6W
Ingress Protection: IP67
Dimensions: Φ157mm×138mm
Weight: 0.46kg
Dahua 4MP Dome Camera IPC-HDW4433C-A 2.8mm PoE IP Security Camera Outdoor & Indoor Network Surveillance IP Camera with Audio, Built-in Mic, 164ft/50M IR Night Vision, H.265 WDR, ONVIF, IP67 (Dome)
Model: Dahua 4MP PoE IP Camera IPC-HDW4433C-A (2.8mm)
Dahua Camera Features
Max. IR LEDs Length: 50m
Day/Night: Auto(ICR) / Color / B/W
Backlight Compensation: BLC / HLC / DWDR White Balance Auto/Manual
Gain Control: Auto/Manual
Noise Reduction: 3D
Privacy Masking: Up to 4 areas
Image Sensor: 1/3" 4Megapixel progressive CMOS
Effective Pixels: 2688(H)x1520(V)
Scanning System: Progressive
Electronic Shutter Speed: Auto/Manual, 1/3(4)~1/10000s
Min. Illumination: 0.01Lux/F2.0 (Color), 0Lux/F2.0(IR on)
S/N Ratio: More than 50dB
Adjust the angle: Level : 0 ° ~ 360 °; Vertical : 0 ° ~ 65 °
Lens
Fixed lens: 2.8mm
Max Aperture: F2.0
Angle of View: Level:99°, Vertical:58°, Diagonal:116°
Lens Type: Fixed lens
Mount Type: Board-in Type
Video
Compression: H.265; H.264; H.264H; H.264B; MJPEG Frame Rate; Main Stream.
Resolution: 4M(2688x1520)/3M(2304x1296)/1080P(1920x1080)/720P(1280x720)D1(704x576/704x480)/CIF(352x288/352x240)
Audio: Built-in Mic
Main Stream: 4M(1~20fps)/3M(1~25/30fps)
Sub Stream: D1/CIF(1 ~ 25/30fps)
Third Stream: 720P(1-5/8fps)(WDR on) & 720P(1-18/2fps)(WDR off)
Network
Ethernet: RJ-45 (10/100Base-T)
Protocol: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour.
Compatibility: ONVIF, PSIA, CGI
Max. User Access: 20 users
Smart Phone: iPhone, iPad, Android
Auxiliary Interface
RS485: N/A
Alarm: N/A
PIR Sensor Range: N/A
General
Power Supply: DC12V, PoE (802.3af)
Power Consumption: Max 3.6W
Ingress Protection: IP67
Dimensions: Φ157mm×138mm
Weight: 0.46kg
