Camera
Image Sensor:1/3" 4 Megapixel progressive CMOS
Effective Pixels:2688(H)x1520(V)
Scanning System:Progressive
Electronic Shutter Speed:(Auto/Manual) 1/3(4)~1/10000s
Min. Illumination:0.01Lux/F1.4(Color), 0Lux/F1.4(IR on)
S/N Ratio More than 50dB
Video Output:1 port
Camera Features
Max. IR LEDs Length:164ft/50m
Day/Night:Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / DWDR White Balance Auto/Manual
Gain Control:Auto/Manual
Noise Reduction:3D
Privacy Masking:Up to 4 areas
Video Detection:Motion Detection, Video Tamper, Defocus Detection, Face Detection.
Smart detection:Tripwire, Intrusion, Abandoned/Missing, Scene Changing, Loitering Detection, Crowd Gathering Estimation, Fast-Moving, Parking Detection
Lens
Focal Length:2.7-13.5mm VF motorized lens
Max Aperture:F2.0(F2.0/F2.0)
Focus Control:Manual
Angle of View: H:81°/110°/55°
Lens Type:Fixed lens
Mount Type:Board-in Type
Video
Compression:H.265;H.264;H.264H;H.264B;MJPEG Frame Rate;
Main Stream:3M(1~20fps)/1080P/720P(1 ~ 25/30fps)
Sub Stream:D1/CIF(1 ~ 25/30fps)
Bit Rate:H.265:32K ~ 4156Kbps
Audio
Compression:N/A
Interface:N/A
Network
Ethernet RJ-45 (10/100Base-T)
Protocol IPv4/IPv6,HTTP,HTTPS,SSL,TCP/IP,UDP,UPnP,ICMP,IGMP,SNMP,RTSP,RTP,SMTP,NTP,DHCP,DNS,PPPOE,DDNS,FTP,IP Filter,QoS,Bonjour.
Compatibility:ONVIF,PSIA,CGI
Max. User Access:20users
Smart Phone:iPhone,iPad,Android
Auxiliary Interface
Memory Slot:Micro SD Max 128GB
RS485:N/A
Alarm:N/A
PIR Sensor Range:N/A
General
Power Supply:DC12V, PoE (802.3af)
Power Consumption:Max 5.4W
Ingress Protection:IP67
Vandal Resistance:IK10
Dimensions:Φ122mm×89mm
Weight:0.41kg

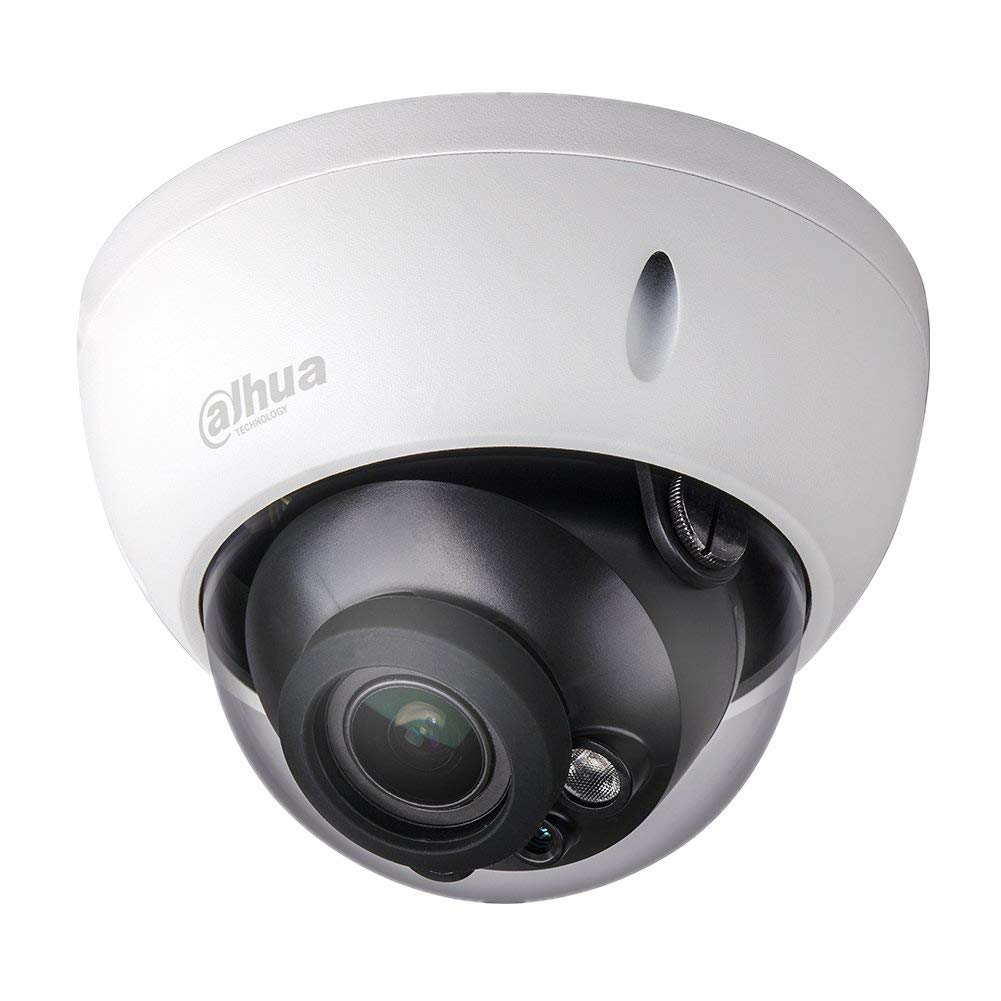

Dahua 4MP Dome IP Camera , PoE Camera IPC-HDBW4433R-ZS 2.7-13.5mm Motorized Varifocal Lens 5X Optical Zoom Security IP Camera, 50m IR Night Vision Outdoor Surveillance Camera H.265, ONVIF, IK10, IP67
Camera
Image Sensor:1/3" 4 Megapixel progressive CMOS
Effective Pixels:2688(H)x1520(V)
Scanning System:Progressive
Electronic Shutter Speed:(Auto/Manual) 1/3(4)~1/10000s
Min. Illumination:0.01Lux/F1.4(Color), 0Lux/F1.4(IR on)
S/N Ratio More than 50dB
Video Output:1 port
Camera Features
Max. IR LEDs Length:164ft/50m
Day/Night:Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / DWDR White Balance Auto/Manual
Gain Control:Auto/Manual
Noise Reduction:3D
Privacy Masking:Up to 4 areas
Video Detection:Motion Detection, Video Tamper, Defocus Detection, Face Detection.
Smart detection:Tripwire, Intrusion, Abandoned/Missing, Scene Changing, Loitering Detection, Crowd Gathering Estimation, Fast-Moving, Parking Detection
Lens
Focal Length:2.7-13.5mm VF motorized lens
Max Aperture:F2.0(F2.0/F2.0)
Focus Control:Manual
Angle of View: H:81°/110°/55°
Lens Type:Fixed lens
Mount Type:Board-in Type
Video
Compression:H.265;H.264;H.264H;H.264B;MJPEG Frame Rate;
Main Stream:3M(1~20fps)/1080P/720P(1 ~ 25/30fps)
Sub Stream:D1/CIF(1 ~ 25/30fps)
Bit Rate:H.265:32K ~ 4156Kbps
Audio
Compression:N/A
Interface:N/A
Network
Ethernet RJ-45 (10/100Base-T)
Protocol IPv4/IPv6,HTTP,HTTPS,SSL,TCP/IP,UDP,UPnP,ICMP,IGMP,SNMP,RTSP,RTP,SMTP,NTP,DHCP,DNS,PPPOE,DDNS,FTP,IP Filter,QoS,Bonjour.
Compatibility:ONVIF,PSIA,CGI
Max. User Access:20users
Smart Phone:iPhone,iPad,Android
Auxiliary Interface
Memory Slot:Micro SD Max 128GB
RS485:N/A
Alarm:N/A
PIR Sensor Range:N/A
General
Power Supply:DC12V, PoE (802.3af)
Power Consumption:Max 5.4W
Ingress Protection:IP67
Vandal Resistance:IK10
Dimensions:Φ122mm×89mm
Weight:0.41kg
