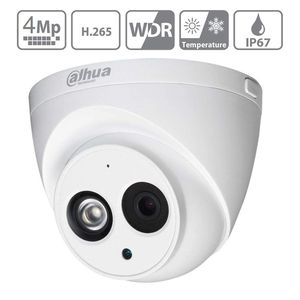

Dahua 4MP Dome Camera IPC-HDW4433C-A 3.6mm Eyeball Turret
Camera Features
Max. IR LEDs Length: 50m
Day/Night: Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / DWDR White Balance Auto/Manual
Gain Control: Auto/Manual
Noise Reduction: 3D
Privacy Masking: Up to 4 areas
Camera
Image Sensor: 1/3" 4Megapixel progressive CMOS
Effective Pixels: 2688(H)x1520(V)
Scanning System: Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/10000s
Min. Illumination: 0.01Lux/F2.0 (Color), 0Lux/F2.0(IR on)
S/N Ratio More than 50dB
Adjust the angle: Level : 0 ° ~ 360 °, Vertical : 0 ° ~ 65 °
Lens
Fixed lens: 3.6mm
Max Aperture: F2.0
Angle of View: Level:79°,Vertical:42.4°,Diagonal:92.8°
Lens Type: Fixed lens
Mount Type:Board-in Type
Video
Compression: H.265;H.264;H.264H;H.264B;MJPEG Frame Rate;Main Stream
Resolution:4M(2688x1520)/3M(2304x1296)/1080P(1920x1080)/720P(1280x720)D1(704x576/704x480)/CIF(352x288/352x240)
Audio: built-in Mic
Main Stream: 4M(1~20fps)/3M(1~25/30fps)
Sub Stream: D1/CIF(1 ~ 25/30fps)
Third Stream: 720P(1-5/8fps)(WDR on) & 720P(1-18/2fps)(WDR off)
Network
Ethernet RJ-45 (10/100Base-T)
Protocol IPv4/IPv6,HTTP,HTTPS,SSL,TCP/IP,UDP,UPnP,ICMP,IGMP,SNMP,RTSP,RTP,SMTP,NTP,DHCP,DNS,PPPOE,DDNS,FTP,IP Filter,QoS,Bonjour Compatibility: ONVIF,PSIA,CGI
Max. User Access: 20users
Smart Phone: iPhone, iPad, Android
Auxiliary Interface
RS485: N/A
Alarm: N/A
PIR Sensor Range: N/A
Other
General Power Supply:DC12V, PoE (802.3af)
Power Consumption:Max 3.6W
Ingress Protection:IP67
Dimensions: Φ157mm×138mm
Weight: 0.46kg
