Description
Camera
Image Sensor;1/3" CMOS
Effective Pixels:2592(H) x 1520(V), 4 Megapixels
RAM/ROM:1024M/128M
Scanning System:Progressive
Electronic Shutter Speed:1/1s~1/30,000s
Minimum Illumination:Color: 0.05Lux@F1.6; 0Lux@F1.6(IR on)
S/N Ratio:More than 55dB
IR Distance:Distance up to 100m (328ft)
IR On/Off Control:Auto/Manual
IR LEDs:4
Lens
Focal Length:4.5mm~135mm
Max. Aperture:F1.6 ~ F4.4
Angle of View:H: 60° ~ 2.2°
Optical Zoom:30x
Focus Control:Auto/Manual
Close Focus Distance:100mm~ 1000mm
PTZ
Pan/Tilt Range:Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°,auto flip 180°
Manual Control Speed:Pan: 0.1° ~300° /s; Tilt: 0.1° ~200° /s
Preset Speed:Pan: 400° /s; Tilt: 300° /s
Presets:300
PTZ Mode:5 Pattern, 8 Tour, Auto Pan ,Auto Scan
Video
Compression:H.265+/H.265/H.264+/H.264
Streaming Capability:3 Streams
Bit Rate ControlCBR/VBR
Bit Rate:H.265/H.264: 448K ~ 8192Kbps
Region of Interest:Support
Electronic Image Stabilization (EIS):Support
Defog:Support
Digital Zoom:16x
Flip:180°
Privacy Masking:Up to 24 areas
Network
Ethernet:RJ-45 (10Base-T/100Base-TX)
Interoperability:ONVIF, PSIA, CGI
Max. User Access:20 users
Web Viewer:IE, Chrome, Firefox, Safari
Management Software:Smart PSS, DSS
Smart Phone:IOS, Android
Interface
Video Interface:N/A
Audio Interface:1/1
RS485:N/A
Alarm I/O:2/1
Electrical
Power Supply:AC24V/3A(±10%), PoE+(802.3at)
Power Consumption:13W,23W (IR on)
Environmental
Operating Conditions:-40°C ~ 70°C (-40°F ~ +158°F) / Less than 90% RH
Ingress Protection:IP66
Construction
Casing:Metal
Dimensions:Φ186(mm) x 309(mm)
Net Weight:3.5kg(7.72lb)
Gross Weight:6.8kg(14.99lb)
Image Sensor;1/3" CMOS
Effective Pixels:2592(H) x 1520(V), 4 Megapixels
RAM/ROM:1024M/128M
Scanning System:Progressive
Electronic Shutter Speed:1/1s~1/30,000s
Minimum Illumination:Color: 0.05Lux@F1.6; 0Lux@F1.6(IR on)
S/N Ratio:More than 55dB
IR Distance:Distance up to 100m (328ft)
IR On/Off Control:Auto/Manual
IR LEDs:4
Lens
Focal Length:4.5mm~135mm
Max. Aperture:F1.6 ~ F4.4
Angle of View:H: 60° ~ 2.2°
Optical Zoom:30x
Focus Control:Auto/Manual
Close Focus Distance:100mm~ 1000mm
PTZ
Pan/Tilt Range:Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°,auto flip 180°
Manual Control Speed:Pan: 0.1° ~300° /s; Tilt: 0.1° ~200° /s
Preset Speed:Pan: 400° /s; Tilt: 300° /s
Presets:300
PTZ Mode:5 Pattern, 8 Tour, Auto Pan ,Auto Scan
Video
Compression:H.265+/H.265/H.264+/H.264
Streaming Capability:3 Streams
Bit Rate ControlCBR/VBR
Bit Rate:H.265/H.264: 448K ~ 8192Kbps
Region of Interest:Support
Electronic Image Stabilization (EIS):Support
Defog:Support
Digital Zoom:16x
Flip:180°
Privacy Masking:Up to 24 areas
Network
Ethernet:RJ-45 (10Base-T/100Base-TX)
Interoperability:ONVIF, PSIA, CGI
Max. User Access:20 users
Web Viewer:IE, Chrome, Firefox, Safari
Management Software:Smart PSS, DSS
Smart Phone:IOS, Android
Interface
Video Interface:N/A
Audio Interface:1/1
RS485:N/A
Alarm I/O:2/1
Electrical
Power Supply:AC24V/3A(±10%), PoE+(802.3at)
Power Consumption:13W,23W (IR on)
Environmental
Operating Conditions:-40°C ~ 70°C (-40°F ~ +158°F) / Less than 90% RH
Ingress Protection:IP66
Construction
Casing:Metal
Dimensions:Φ186(mm) x 309(mm)
Net Weight:3.5kg(7.72lb)
Gross Weight:6.8kg(14.99lb)

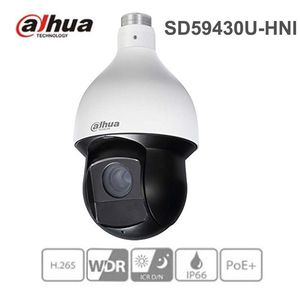

Dahua 4Mp PTZ Full HD 30x Network IR PTZ Dome Camera SD59430U-HNI H.265 IP66 Waterproof IR IR distance up to 100m ONVIF English Version
Price is below average
Current Price
$669.89
Average
$689.16
Min Price
$625.99
Max Price
$739.99
Price dynamics
3%
Description
Camera
Image Sensor;1/3" CMOS
Effective Pixels:2592(H) x 1520(V), 4 Megapixels
RAM/ROM:1024M/128M
Scanning System:Progressive
Electronic Shutter Speed:1/1s~1/30,000s
Minimum Illumination:Color: 0.05Lux@F1.6; 0Lux@F1.6(IR on)
S/N Ratio:More than 55dB
IR Distance:Distance up to 100m (328ft)
IR On/Off Control:Auto/Manual
IR LEDs:4
Lens
Focal Length:4.5mm~135mm
Max. Aperture:F1.6 ~ F4.4
Angle of View:H: 60° ~ 2.2°
Optical Zoom:30x
Focus Control:Auto/Manual
Close Focus Distance:100mm~ 1000mm
PTZ
Pan/Tilt Range:Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°,auto flip 180°
Manual Control Speed:Pan: 0.1° ~300° /s; Tilt: 0.1° ~200° /s
Preset Speed:Pan: 400° /s; Tilt: 300° /s
Presets:300
PTZ Mode:5 Pattern, 8 Tour, Auto Pan ,Auto Scan
Video
Compression:H.265+/H.265/H.264+/H.264
Streaming Capability:3 Streams
Bit Rate ControlCBR/VBR
Bit Rate:H.265/H.264: 448K ~ 8192Kbps
Region of Interest:Support
Electronic Image Stabilization (EIS):Support
Defog:Support
Digital Zoom:16x
Flip:180°
Privacy Masking:Up to 24 areas
Network
Ethernet:RJ-45 (10Base-T/100Base-TX)
Interoperability:ONVIF, PSIA, CGI
Max. User Access:20 users
Web Viewer:IE, Chrome, Firefox, Safari
Management Software:Smart PSS, DSS
Smart Phone:IOS, Android
Interface
Video Interface:N/A
Audio Interface:1/1
RS485:N/A
Alarm I/O:2/1
Electrical
Power Supply:AC24V/3A(±10%), PoE+(802.3at)
Power Consumption:13W,23W (IR on)
Environmental
Operating Conditions:-40°C ~ 70°C (-40°F ~ +158°F) / Less than 90% RH
Ingress Protection:IP66
Construction
Casing:Metal
Dimensions:Φ186(mm) x 309(mm)
Net Weight:3.5kg(7.72lb)
Gross Weight:6.8kg(14.99lb)
Image Sensor;1/3" CMOS
Effective Pixels:2592(H) x 1520(V), 4 Megapixels
RAM/ROM:1024M/128M
Scanning System:Progressive
Electronic Shutter Speed:1/1s~1/30,000s
Minimum Illumination:Color: 0.05Lux@F1.6; 0Lux@F1.6(IR on)
S/N Ratio:More than 55dB
IR Distance:Distance up to 100m (328ft)
IR On/Off Control:Auto/Manual
IR LEDs:4
Lens
Focal Length:4.5mm~135mm
Max. Aperture:F1.6 ~ F4.4
Angle of View:H: 60° ~ 2.2°
Optical Zoom:30x
Focus Control:Auto/Manual
Close Focus Distance:100mm~ 1000mm
PTZ
Pan/Tilt Range:Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°,auto flip 180°
Manual Control Speed:Pan: 0.1° ~300° /s; Tilt: 0.1° ~200° /s
Preset Speed:Pan: 400° /s; Tilt: 300° /s
Presets:300
PTZ Mode:5 Pattern, 8 Tour, Auto Pan ,Auto Scan
Video
Compression:H.265+/H.265/H.264+/H.264
Streaming Capability:3 Streams
Bit Rate ControlCBR/VBR
Bit Rate:H.265/H.264: 448K ~ 8192Kbps
Region of Interest:Support
Electronic Image Stabilization (EIS):Support
Defog:Support
Digital Zoom:16x
Flip:180°
Privacy Masking:Up to 24 areas
Network
Ethernet:RJ-45 (10Base-T/100Base-TX)
Interoperability:ONVIF, PSIA, CGI
Max. User Access:20 users
Web Viewer:IE, Chrome, Firefox, Safari
Management Software:Smart PSS, DSS
Smart Phone:IOS, Android
Interface
Video Interface:N/A
Audio Interface:1/1
RS485:N/A
Alarm I/O:2/1
Electrical
Power Supply:AC24V/3A(±10%), PoE+(802.3at)
Power Consumption:13W,23W (IR on)
Environmental
Operating Conditions:-40°C ~ 70°C (-40°F ~ +158°F) / Less than 90% RH
Ingress Protection:IP66
Construction
Casing:Metal
Dimensions:Φ186(mm) x 309(mm)
Net Weight:3.5kg(7.72lb)
Gross Weight:6.8kg(14.99lb)
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
Product review & video
today on the hookup we're going to take a look at the most intimidating type of security camera the pan tilt zoom or ptz camera in the past when people have asked me to review ptz cameras i've always said that you'd be better off buying a few different stationary cameras and point them at each area of interest 24 7 instead of relying on a ptz camera that may be looking at the wrong place at the wrong time after testing these 9 cameras i mostly feel the same way but i do think that some of these cameras are useful tools to add to your security system while others are just toys in today's video we'll compare their field of view then daytime clarity pan and tilt accuracy pan and tilt speed zoom performance night time performance and finally we'll take a look at some extra features that some of these cameras have to offer all of my tests were completed in the blue iris nvr software unless o
