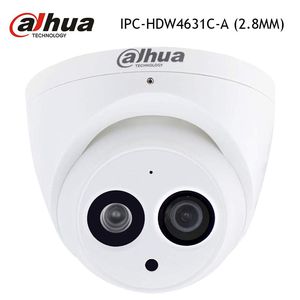

Dahua 6MP Dome Camera IPC-HDW4631C-A 2.8mm Lens PoE Eyeball Turret

Camera

Sensor type: 1/2.9" 6Megapixel progressive scan CMOS

Sensor effective pixels: 3072(H) x 2048(V)

Electronic Shutter Speed: Auto/Manual, 1/3~1/100000s

Minimum Illumination: 0.002Lux ( Color) / 0.0002( black/white)/ 0Lux(IR on)

S/N Ratio: More than 56dB

Adjust the angle: Level: 0 ° ~ 360 °, Vertical : 0 ° ~ 65 °

IR Distance: Distance up to 30m

Ingress Protection: IP67

Lens

Focal Length: 2.8mm

Max. Aperture: F2.5

Angle of View: 2.8mm: H: 99° V: 69.4°

Close Focus Distance: 0.8m

Video

Compression: H.265/H.264/MJPEG

Streaming Capability: 3 Streams

Resolution : 50HZ:Main (3072×2048@20fps),Sub(704×576@20fps),Third(1280×720@6fps);

Main(2592×1944@25fps),Sub(704×576@25fps),Third(1280×720@4fps) 60Hz:

Main(3072×2048@20fps),Sub(704×480@20fps),Third(1280×720@7fps);

Main(2688×1520@30fps),Sub(704×480@30fps),Third(1280×720@10fps)"

Bit Rate: 14K ~ 10240Kbps

Day/Night: Auto(ICR) / Color / B/W

BLC Mode: BLC / HLC / WDR(120dB)

White Balance: Auto/Natural/Street Lamp/Outdoor/Manual

Noise Reduction: 3D DNR

Audio

Compression: G.711a/ G.711Mu/ AAC/ G.726

Audio Interface: Built-in Mic

Network

Ethernet: RJ-45 (10/100Base-T)

Protocol: HTTP; TCP; ARP; RTSP; RTP; UDP; SMTP;FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP;IGMP; SNMP

Interoperability: ONVIF, PSIA, CGI;GB/T28181

Max. User Access: 20 Users

Edge Storage: NAS; Local PC for instant recording

Smart Phone: IOS, Android

Electrical

Power Supply: DC12V, PoE (802.3af)(Class 0)

Power Consumption: <4.8W

Construction

Casing: Metal

Dimensions: Φ106mm×93.7mm (4.17"×3.69")

Net Weight: 0.47Kg (1.04lb)

Gross Weight: 0.65Kg (1.43lb)
