Description
Description:

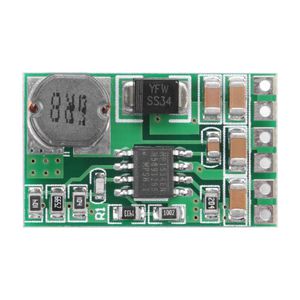

DC-DC Step-Down Converter module working frequency 900KHz. efficiency is 76-92% .
Quiescent current: about 250uA
Over-temperature shutdown, Under-Voltage Lockout (UVLO), BS-voltage protection, and short circuit protection.
3.7V :
Input voltage 4.5~27V,output 3.7V
Maximum output current 2.5A,Short time maximum output current 3.5A
Over-temperature shutdown, Under-Voltage
5V :
Input voltage 6.5~27V,output 5V
Maximum output current 2.5A,Short time maximum output current 3.5A
Over-temperature shutdown, Under-Voltage
9V :
Input voltage 11~27V,output 9V
Maximum output current 2.3A,Short time maximum output current 3A
12V :
Input voltage 13~27V,output 12V
Maximum output current 2A,Short time maximum output current 3A
Specification:
Type:Step-down power supplement module
Voltage: 3.7v, 5v,9v,12v(Optional)
Operating Temperature : -20°C to +85°C
Size: 25*15*6.3mm/0.98*0.59*0.25in
Weight: Approx.2.4g/0.1oz
Package list:
1 x Step-down power supplement module
DC-DC Step-Down Converter module working frequency 900KHz. efficiency is 76-92% .
Quiescent current: about 250uA
Over-temperature shutdown, Under-Voltage Lockout (UVLO), BS-voltage protection, and short circuit protection.
3.7V :
Input voltage 4.5~27V,output 3.7V
Maximum output current 2.5A,Short time maximum output current 3.5A
Over-temperature shutdown, Under-Voltage
5V :
Input voltage 6.5~27V,output 5V
Maximum output current 2.5A,Short time maximum output current 3.5A
Over-temperature shutdown, Under-Voltage
9V :
Input voltage 11~27V,output 9V
Maximum output current 2.3A,Short time maximum output current 3A
12V :
Input voltage 13~27V,output 12V
Maximum output current 2A,Short time maximum output current 3A
Specification:
Type:Step-down power supplement module
Voltage: 3.7v, 5v,9v,12v(Optional)
Operating Temperature : -20°C to +85°C
Size: 25*15*6.3mm/0.98*0.59*0.25in
Weight: Approx.2.4g/0.1oz
Package list:
1 x Step-down power supplement module
DC-DC Step-Down Power Converter,DC-DC Step-Down Conversion Power Supplement Module 5-27V to 3.7V/5V/9V/12V Adjustable Buck Voltage Module(3V7)
