Description
Specifications:
Input Voltage: DC 6V-32V
Output Voltage: DC 0-32V (continuously adjustable)
Output Current: Max. 5A(Adjustable)
Power: Max. 160W( recommended to be used in 120W)
Conversion Rate: Max. 95%
Operating Temperature: -10~75℃
Resolution Accuracy: 0.01V(Voltage), 0.01A(Current)
Short Circuit Protection: Yes
Reverse Input Protection: Yes
Output Backflow Protection: No, add a diode if use for charging
Connection mode:
terminal VI+: input +, VO+:output +
Weight: 149g
How to Set
1.Output Voltage Settings: short press "CV" button, enter the voltage setting mode, turn potentiometer to adjust the current voltage value, press the potentiometer can switch to the voltage value of decimal point before or after the decimal point to adjust, after the adjustment, short press "CV"again to save and exit
2.Output Current Settings: short press "CC" button, enter the current setting mode, turn potentiometer to adjust the current value, press the potentiometer can switch to the decimal point before or after the decimal point of current value to adjust, after the adjustment, short press "CC" again to save and exit.
3.Display MODE Settings: short press "MODE", switch display mode, IN: display input voltage, OUT: display output voltage
4.Switch Output Settings: directly short press the potentiometer key, open or close the output terminal voltage, and the current position will display OFF when closing.
Package Included:
1 x Automatic Step-Down Module
Input Voltage: DC 6V-32V
Output Voltage: DC 0-32V (continuously adjustable)
Output Current: Max. 5A(Adjustable)
Power: Max. 160W( recommended to be used in 120W)
Conversion Rate: Max. 95%
Operating Temperature: -10~75℃
Resolution Accuracy: 0.01V(Voltage), 0.01A(Current)
Short Circuit Protection: Yes
Reverse Input Protection: Yes
Output Backflow Protection: No, add a diode if use for charging
Connection mode:
terminal VI+: input +, VO+:output +
Weight: 149g
How to Set
1.Output Voltage Settings: short press "CV" button, enter the voltage setting mode, turn potentiometer to adjust the current voltage value, press the potentiometer can switch to the voltage value of decimal point before or after the decimal point to adjust, after the adjustment, short press "CV"again to save and exit
2.Output Current Settings: short press "CC" button, enter the current setting mode, turn potentiometer to adjust the current value, press the potentiometer can switch to the decimal point before or after the decimal point of current value to adjust, after the adjustment, short press "CC" again to save and exit.
3.Display MODE Settings: short press "MODE", switch display mode, IN: display input voltage, OUT: display output voltage
4.Switch Output Settings: directly short press the potentiometer key, open or close the output terminal voltage, and the current position will display OFF when closing.
Package Included:
1 x Automatic Step-Down Module

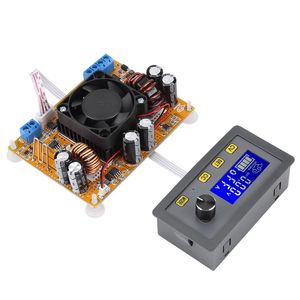

DC-DC Step Down/Up Converter Automatic DC to DC Boost/Buck Converter DC Power Supply Module,6V-32V to 0-32V with Fan
