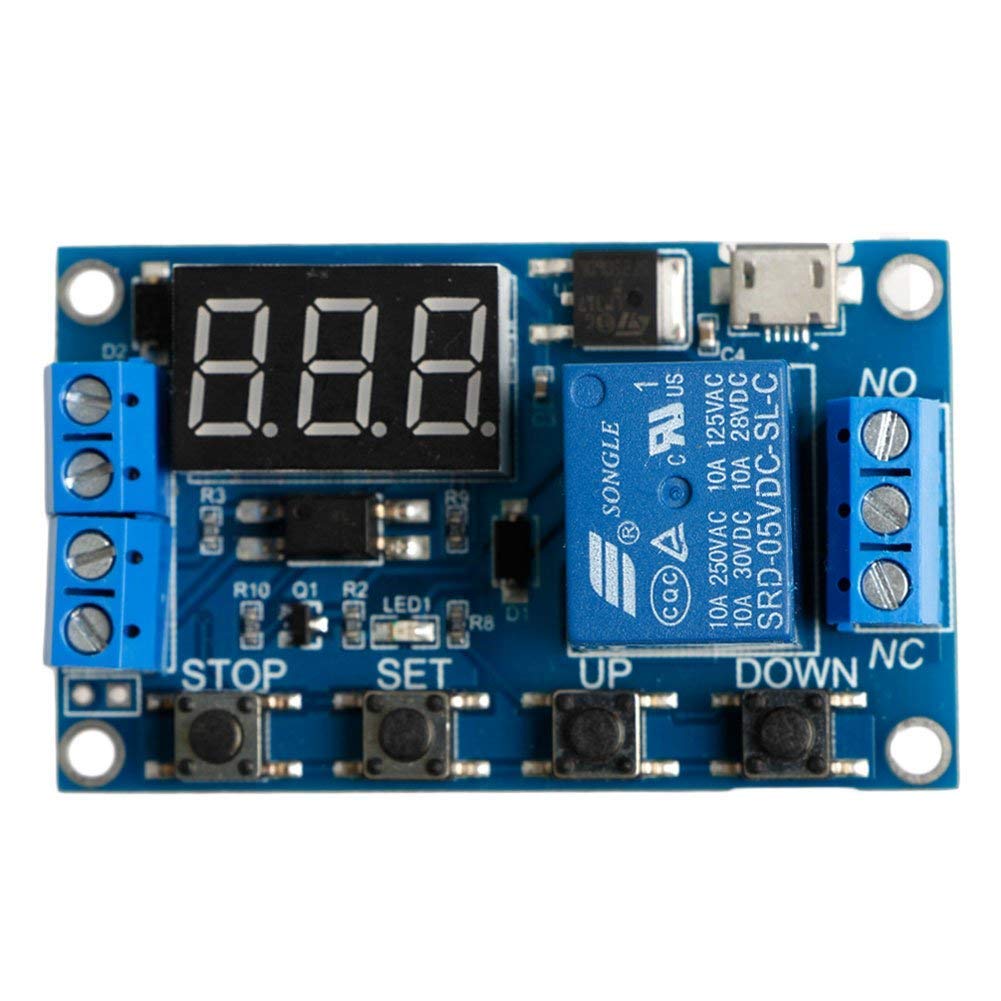

ARCELI Store 6-30V Adjustable Relay Timer Cycle Module Switch Trigger Time Delay Circuit Board

hello today's video is on stock number three five two three eight and P a multi-function timer let's see if we can show you the programming on how this thing works it operates off of six 230 volts DC or 5 volts if you use the little USB jack that's for power only there is no programming for your computer the top two terminals here are for your power in I am using a normally open momentary push-button switch as my trigger so I'm just jumping off the power over to the to your trigger inputs you can share a common ground if you had a jumper wire there on the board but I'm simply just going to use a little piece of wire okay first things you see is the nice little display I'll show you how to program here as a single-pole double-throw relay hookup to no terminal strip there you have four buttons across the bottom stop set up and down okay that's the very basic layout let's start programming
