Description
Image Sensor 1/2.8" CMOS Effective Pixels 1920(H) x 1080(V), 2 Megapixels RAM/ROM 256M/128M Scanning System Progressive Electronic Shutter Speed 1/1s~1/300,000s Minimum Illumination Color: 0.05Lux@F1.6; 0Lux@F1.6(IR on) S/N Ratio More than 55dB IR Distance Distance up to 100m (328ft) IR On/Off Control Auto/Manual IR LEDs 4 Lens Focal Length 4.5mm~135mm Max. Aperture F1.6 ~ F4.4 Angle of View H: 67.8° ~ 2.4° Optical Zoom 30x Focus Control Auto/Manual Detect Observe PTZ Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°,auto flip 180° Manual Control Speed Pan: 0.1° ~300° /s; Tilt: 0.1° ~200° /s Preset Speed Pan: 400° /s; Tilt: 300° /s Presets 300 PTZ Mode Protocol DH-SD Intelligence Auto Tracking N/A IVS Tripwire, Intrusion,Abandoned/Missing, Face Detection Video Compression H.264+/H.264/MJPEG Streaming Capability 3 Streams Resolution 1080P(1920×1080)/720P(1280×720)/ D1(704×576/704×480) /CIF(352×288/352×240) Frame Rate Main stream 1080P/ D1 (1 ~ 25/30fps), 720P(1~50/60fps) Sub stream1 D1/CIF(1 ~ 25/30fps) Sub stream2 720P/D1/ CIF (1 ~ 25/30fps) Bit Rate Control CBR/VBR Bit Rate H.264+/H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ 10240Kbps Day/Night Auto(ICR) / Color / B/W Backlight Compensation BLC / HLC / DWDR White Balance Auto,ATW,Indoor,Outdoor,Manual Gain Control Auto / Manual Noise Reduction Ultra DNR (2D/3D) Digital Zoom 16x Flip 180° Audio Compression G.711a/G.711u(32kbps)/PCM(128kbps) Network Ethernet RJ-45 (10/100Base-T) ONVIF, PSIA, CGI Web Viewer IE, Chrome, Firefox, Safari Management Software Smart PSS, DSS Smart Phone IOS, Android Power Supply AC24V/3A(±10%), PoE+(802.3at) Power Consumption 13W,23W (IR on) Environmental Operating Conditions -40ºC ~ 70ºC (-40°F ~ +158°F) / Less than 90% RH Ingress Protection IP66 Dimensions Φ186.0(mm) x 309(mm)

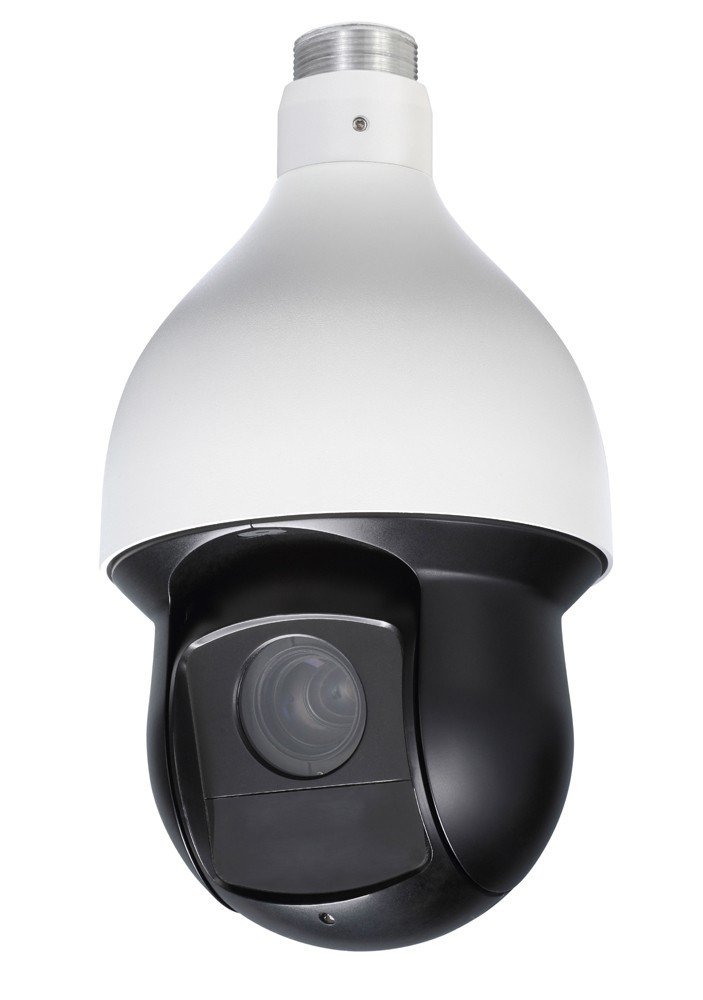

DH Series 2 Megapixel 30X Network IP PTZ IR Security Camera Pan Tilt Zoom POE+ with Wall mount
Price is below average
Current Price
$675
Average
$677
Min Price
$675
Max Price
$679
Price dynamics
0%
Description
Image Sensor 1/2.8" CMOS Effective Pixels 1920(H) x 1080(V), 2 Megapixels RAM/ROM 256M/128M Scanning System Progressive Electronic Shutter Speed 1/1s~1/300,000s Minimum Illumination Color: 0.05Lux@F1.6; 0Lux@F1.6(IR on) S/N Ratio More than 55dB IR Distance Distance up to 100m (328ft) IR On/Off Control Auto/Manual IR LEDs 4 Lens Focal Length 4.5mm~135mm Max. Aperture F1.6 ~ F4.4 Angle of View H: 67.8° ~ 2.4° Optical Zoom 30x Focus Control Auto/Manual Detect Observe PTZ Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°,auto flip 180° Manual Control Speed Pan: 0.1° ~300° /s; Tilt: 0.1° ~200° /s Preset Speed Pan: 400° /s; Tilt: 300° /s Presets 300 PTZ Mode Protocol DH-SD Intelligence Auto Tracking N/A IVS Tripwire, Intrusion,Abandoned/Missing, Face Detection Video Compression H.264+/H.264/MJPEG Streaming Capability 3 Streams Resolution 1080P(1920×1080)/720P(1280×720)/ D1(704×576/704×480) /CIF(352×288/352×240) Frame Rate Main stream 1080P/ D1 (1 ~ 25/30fps), 720P(1~50/60fps) Sub stream1 D1/CIF(1 ~ 25/30fps) Sub stream2 720P/D1/ CIF (1 ~ 25/30fps) Bit Rate Control CBR/VBR Bit Rate H.264+/H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ 10240Kbps Day/Night Auto(ICR) / Color / B/W Backlight Compensation BLC / HLC / DWDR White Balance Auto,ATW,Indoor,Outdoor,Manual Gain Control Auto / Manual Noise Reduction Ultra DNR (2D/3D) Digital Zoom 16x Flip 180° Audio Compression G.711a/G.711u(32kbps)/PCM(128kbps) Network Ethernet RJ-45 (10/100Base-T) ONVIF, PSIA, CGI Web Viewer IE, Chrome, Firefox, Safari Management Software Smart PSS, DSS Smart Phone IOS, Android Power Supply AC24V/3A(±10%), PoE+(802.3at) Power Consumption 13W,23W (IR on) Environmental Operating Conditions -40ºC ~ 70ºC (-40°F ~ +158°F) / Less than 90% RH Ingress Protection IP66 Dimensions Φ186.0(mm) x 309(mm)
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
Product review & video
today on the hookup we're going to take a look at the most intimidating type of security camera the pan tilt zoom or ptz camera in the past when people have asked me to review ptz cameras i've always said that you'd be better off buying a few different stationary cameras and point them at each area of interest 24 7 instead of relying on a ptz camera that may be looking at the wrong place at the wrong time after testing these 9 cameras i mostly feel the same way but i do think that some of these cameras are useful tools to add to your security system while others are just toys in today's video we'll compare their field of view then daytime clarity pan and tilt accuracy pan and tilt speed zoom performance night time performance and finally we'll take a look at some extra features that some of these cameras have to offer all of my tests were completed in the blue iris nvr software unless o
