Description
Camera
Image Sensor: 1/2.7" CMOS
Effective Pixels: 1928(H)×1088(V), 2.1MP
Scanning System: Progressive
Electronic Shutter Speed: PAL: 1/3s~1/30,000s NTSC: 1s~1/30,000s
Minimum Illumination: 0.03Lux/F1.4, 0Lux IR on
S/N Ratio: More than 65dB
IR Distance: Up to 30m (98feet)
IR On/Off Control: Auto / Manual
IR LEDs: 2
Lens
Lens Type: Motorized lens/Fixed iris
Mount Type: Board-in
Focal Length: 2.7-12mm
Max Aperture: F1.4
Angle of View: H: 99°~37°
Focus Control: Auto/Manual
Close Focus Distance: 300mm 11.81''
Pan/Tilt/Rotation: Pan: 0° ~ 355° Tilt: 0° ~ 75° Rotation: 0° ~ 355°
Video
Resolution: 1080P (1920×1080)
Frame Rate: 25/30fps@1080P, 25/30/50/60fps@720P
Video Output: 1-channel BNC HDCVI high definition video output & 1-channel BNC CVBS video output CVBS tester out
Day/Night: Auto (ICR) / Manual
OSD Menu: Multi-language
BLC Mode: BLC / HLC / WDR
WDR: 120dB
Gain Control: AGC
Noise Reduction: 2D/3D
White Balance: Auto / Manual
Smart IR: Auto / Manual
Certifications: CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Interface
Audio Interface: N/A
Eelectrical
Power Supply: 12V DC ±25%
Power Consumption: Max 5W (12V DC, IR on)
Environmental
Operating Conditions: -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH * Start up should be done at above -30°C (-22°F)
Storage Conditions: -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection & Vandal Resistance: IP67 & IK10
Construction
Casing: Aluminium
Dimensions: ∮122mm×88.9mm (∮4.8"×3.5")
Net Weight: 0.45kg (0.99lb)
Gross Weight: 0.60kg (1.32lb)
Image Sensor: 1/2.7" CMOS
Effective Pixels: 1928(H)×1088(V), 2.1MP
Scanning System: Progressive
Electronic Shutter Speed: PAL: 1/3s~1/30,000s NTSC: 1s~1/30,000s
Minimum Illumination: 0.03Lux/F1.4, 0Lux IR on
S/N Ratio: More than 65dB
IR Distance: Up to 30m (98feet)
IR On/Off Control: Auto / Manual
IR LEDs: 2
Lens
Lens Type: Motorized lens/Fixed iris
Mount Type: Board-in
Focal Length: 2.7-12mm
Max Aperture: F1.4
Angle of View: H: 99°~37°
Focus Control: Auto/Manual
Close Focus Distance: 300mm 11.81''
Pan/Tilt/Rotation: Pan: 0° ~ 355° Tilt: 0° ~ 75° Rotation: 0° ~ 355°
Video
Resolution: 1080P (1920×1080)
Frame Rate: 25/30fps@1080P, 25/30/50/60fps@720P
Video Output: 1-channel BNC HDCVI high definition video output & 1-channel BNC CVBS video output CVBS tester out
Day/Night: Auto (ICR) / Manual
OSD Menu: Multi-language
BLC Mode: BLC / HLC / WDR
WDR: 120dB
Gain Control: AGC
Noise Reduction: 2D/3D
White Balance: Auto / Manual
Smart IR: Auto / Manual
Certifications: CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Interface
Audio Interface: N/A
Eelectrical
Power Supply: 12V DC ±25%
Power Consumption: Max 5W (12V DC, IR on)
Environmental
Operating Conditions: -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH * Start up should be done at above -30°C (-22°F)
Storage Conditions: -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection & Vandal Resistance: IP67 & IK10
Construction
Casing: Aluminium
Dimensions: ∮122mm×88.9mm (∮4.8"×3.5")
Net Weight: 0.45kg (0.99lb)
Gross Weight: 0.60kg (1.32lb)

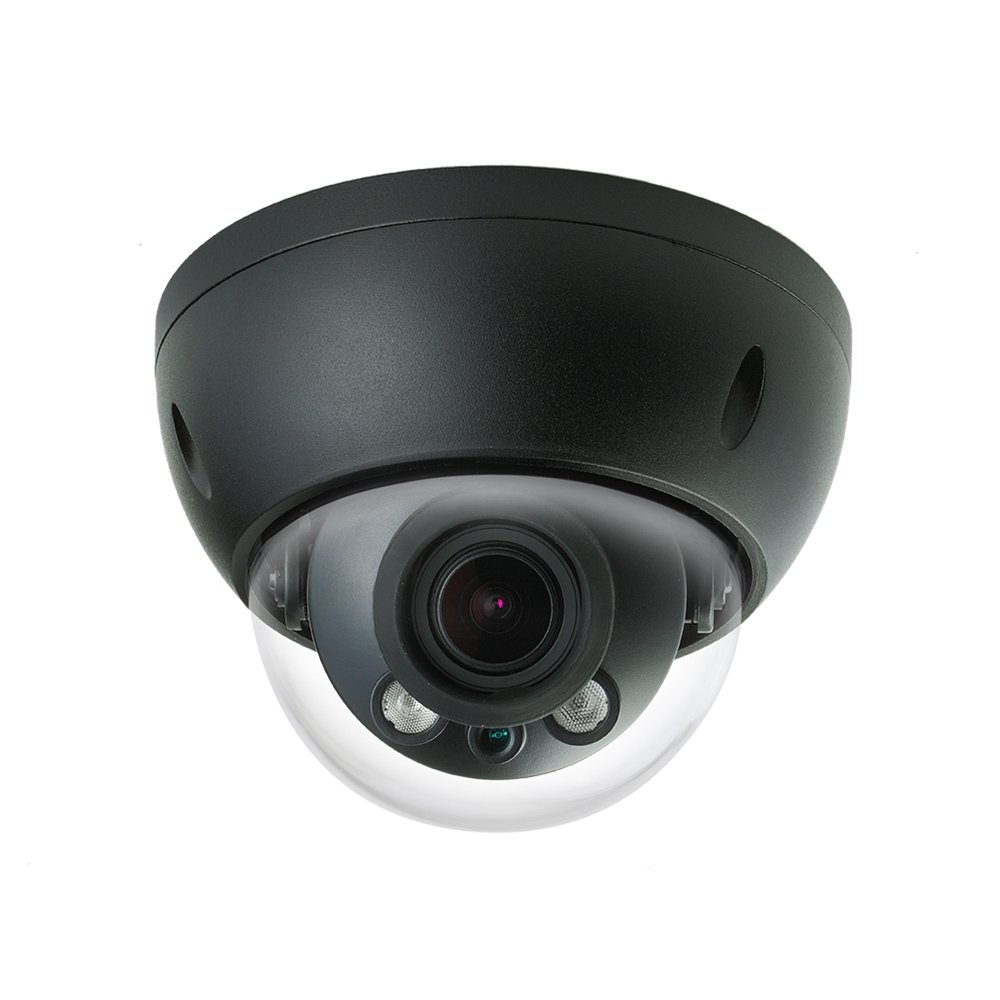

DHTek/Dahua OEM HAC-HDBW2221RN-Z CCTV Camera,2MP WDR HDCVI/TVI/AHD/960H Dome Camera, 2.7-12mm Motorized Lens,IR Night Vision 30m(98ft), IP67, Outdoor for Home Security Black
Price is below average
Current Price
$69.99
Average
$85.99
Min Price
$69.99
Max Price
$102.99
Price dynamics
19%
Description
Camera
Image Sensor: 1/2.7" CMOS
Effective Pixels: 1928(H)×1088(V), 2.1MP
Scanning System: Progressive
Electronic Shutter Speed: PAL: 1/3s~1/30,000s NTSC: 1s~1/30,000s
Minimum Illumination: 0.03Lux/F1.4, 0Lux IR on
S/N Ratio: More than 65dB
IR Distance: Up to 30m (98feet)
IR On/Off Control: Auto / Manual
IR LEDs: 2
Lens
Lens Type: Motorized lens/Fixed iris
Mount Type: Board-in
Focal Length: 2.7-12mm
Max Aperture: F1.4
Angle of View: H: 99°~37°
Focus Control: Auto/Manual
Close Focus Distance: 300mm 11.81''
Pan/Tilt/Rotation: Pan: 0° ~ 355° Tilt: 0° ~ 75° Rotation: 0° ~ 355°
Video
Resolution: 1080P (1920×1080)
Frame Rate: 25/30fps@1080P, 25/30/50/60fps@720P
Video Output: 1-channel BNC HDCVI high definition video output & 1-channel BNC CVBS video output CVBS tester out
Day/Night: Auto (ICR) / Manual
OSD Menu: Multi-language
BLC Mode: BLC / HLC / WDR
WDR: 120dB
Gain Control: AGC
Noise Reduction: 2D/3D
White Balance: Auto / Manual
Smart IR: Auto / Manual
Certifications: CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Interface
Audio Interface: N/A
Eelectrical
Power Supply: 12V DC ±25%
Power Consumption: Max 5W (12V DC, IR on)
Environmental
Operating Conditions: -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH * Start up should be done at above -30°C (-22°F)
Storage Conditions: -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection & Vandal Resistance: IP67 & IK10
Construction
Casing: Aluminium
Dimensions: ∮122mm×88.9mm (∮4.8"×3.5")
Net Weight: 0.45kg (0.99lb)
Gross Weight: 0.60kg (1.32lb)
Image Sensor: 1/2.7" CMOS
Effective Pixels: 1928(H)×1088(V), 2.1MP
Scanning System: Progressive
Electronic Shutter Speed: PAL: 1/3s~1/30,000s NTSC: 1s~1/30,000s
Minimum Illumination: 0.03Lux/F1.4, 0Lux IR on
S/N Ratio: More than 65dB
IR Distance: Up to 30m (98feet)
IR On/Off Control: Auto / Manual
IR LEDs: 2
Lens
Lens Type: Motorized lens/Fixed iris
Mount Type: Board-in
Focal Length: 2.7-12mm
Max Aperture: F1.4
Angle of View: H: 99°~37°
Focus Control: Auto/Manual
Close Focus Distance: 300mm 11.81''
Pan/Tilt/Rotation: Pan: 0° ~ 355° Tilt: 0° ~ 75° Rotation: 0° ~ 355°
Video
Resolution: 1080P (1920×1080)
Frame Rate: 25/30fps@1080P, 25/30/50/60fps@720P
Video Output: 1-channel BNC HDCVI high definition video output & 1-channel BNC CVBS video output CVBS tester out
Day/Night: Auto (ICR) / Manual
OSD Menu: Multi-language
BLC Mode: BLC / HLC / WDR
WDR: 120dB
Gain Control: AGC
Noise Reduction: 2D/3D
White Balance: Auto / Manual
Smart IR: Auto / Manual
Certifications: CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Interface
Audio Interface: N/A
Eelectrical
Power Supply: 12V DC ±25%
Power Consumption: Max 5W (12V DC, IR on)
Environmental
Operating Conditions: -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH * Start up should be done at above -30°C (-22°F)
Storage Conditions: -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection & Vandal Resistance: IP67 & IK10
Construction
Casing: Aluminium
Dimensions: ∮122mm×88.9mm (∮4.8"×3.5")
Net Weight: 0.45kg (0.99lb)
Gross Weight: 0.60kg (1.32lb)
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
Product review & video
you hi today I'm going to be unboxing the 2 4 7 0 a VAW I'm going to go ahead and open the box and show you exactly what to expect if you decide to purchase this camera from us in the future this camera comes with the user manual the camera and a bag of 4 screws this camera is the same as the 2 4 7 0 AV a the only difference is the color you'll notice that this one is the 2 4 7 0 AV aw the white one and this is the 2 4 7 0 AV a both of these cameras are a vandal proof dome style camera they are rated for indoor and outdoor use and they are 700 TVLine resolution cameras they both have two point eight to twelve millimeter lenses which means that you're going to get a 90 degree viewing angle at 2.8 you're going to get a 35 degree viewing angle at 12 millimeters both of these cameras also have 36 infrared LEDs so you're going to get up to about 130 feet of night vision and both of these cam
