Description

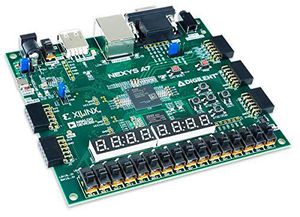

The Nexys A7 is the new name for our popular Nexys 4 DDR board, now available in two FPGA densities! Featuring the same Artix-7 field programmable gate array (FPGA) from Xilinx, the Nexys A7 is a ready-to-use digital circuit development platform designed to bring additional industry applications into the classroom environment. The Artix-7 FPGA is optimized for high-performance logic, and offers more capacity, higher performance, and more resources than earlier designs. With its large, high-capacity FPGA and collection of USB, Ethernet, and other ports, the Nexys A7 can host designs ranging from introductory combinational circuits to powerful embedded processors. Several built-in peripherals, including an accelerometer, a temperature sensor, MEMs digital microphone, speaker amplifier, and plenty of I/O devices allow the Nexys A7 to be used for a wide range of designs without needing any other components.

The Nexys A7-100T is compatible with Xilinx's Vivado Design Suite as well as the ISE toolset, which includes ChipScope and EDK. Xilinx ISE has been discontinued in favor of Vivado Design Suite. Xilinx offers free WebPACK versions of these toolsets, so designs can be implemented at no additional cost.The Nexys A7 is not supported by the Digilent Adept Utility.

Features:

Xilinx Artix-7 FPGA XC7A100T-1CSG324C
15,850 logic slices, each with four 6-input LUTs and 8 flip-flops
4,860 Kbits of fast block RAM
6 clock management tiles, each with phase-locked loop (PLL)
240 DSP slices
Internal clock speeds exceeding 450MHz
On-chip analog-to-digital converter (XADC)
128 MiB DDR2 Serial Flash
Digilent USB-JTAG port for FPGA programming and communication
microSD card connector
Ships with rugged plastic case and USB cable
USB-UART Bridge
10/100 Ethernet PHY
PWM audio output
3-axis accelerometer
16 user switches & more!

Digilent Nexys A7-100T: FPGA Trainer Board Recommended for ECE Curriculum

Price is below average

Current Price

$265

Average

$404.83

Min Price

$265

Max Price

$441.12

Price dynamics

35%

Description

The Nexys A7 is the new name for our popular Nexys 4 DDR board, now available in two FPGA densities! Featuring the same Artix-7 field programmable gate array (FPGA) from Xilinx, the Nexys A7 is a ready-to-use digital circuit development platform designed to bring additional industry applications into the classroom environment. The Artix-7 FPGA is optimized for high-performance logic, and offers more capacity, higher performance, and more resources than earlier designs. With its large, high-capacity FPGA and collection of USB, Ethernet, and other ports, the Nexys A7 can host designs ranging from introductory combinational circuits to powerful embedded processors. Several built-in peripherals, including an accelerometer, a temperature sensor, MEMs digital microphone, speaker amplifier, and plenty of I/O devices allow the Nexys A7 to be used for a wide range of designs without needing any other components.

The Nexys A7-100T is compatible with Xilinx's Vivado Design Suite as well as the ISE toolset, which includes ChipScope and EDK. Xilinx ISE has been discontinued in favor of Vivado Design Suite. Xilinx offers free WebPACK versions of these toolsets, so designs can be implemented at no additional cost.The Nexys A7 is not supported by the Digilent Adept Utility.

Features:

Xilinx Artix-7 FPGA XC7A100T-1CSG324C
15,850 logic slices, each with four 6-input LUTs and 8 flip-flops
4,860 Kbits of fast block RAM
6 clock management tiles, each with phase-locked loop (PLL)
240 DSP slices
Internal clock speeds exceeding 450MHz
On-chip analog-to-digital converter (XADC)
128 MiB DDR2 Serial Flash
Digilent USB-JTAG port for FPGA programming and communication
microSD card connector
Ships with rugged plastic case and USB cable
USB-UART Bridge
10/100 Ethernet PHY
PWM audio output
3-axis accelerometer
16 user switches & more!

According to the data, price will be lower in next two weeks, so not waste your money and track better price!
