Features:

1.Output short circuit protection.
2.Output DC bias protection speaker protection.
3.Over temperature protection: the output will turned off when the temperature of the heat sink FET is higher than 100 °C.

4.This is a pure power amplifier board, whose sensitivity of the input signal of 1.5V rms, if your input signal voltage can't reach this value, recommend add preamp.

5.Mono channel,for 2.0 channel need bid two.

Specifications:

Power supply: dual DC power supply ± 58-± 70V

The rated output power: 500W (± 65V power supply, 4 ohm load, distortion 10%)

Efficiency:> = 90%

SNR: 90dB

The total harmonic distortion:

380W (± 65 power 4 ohm speaker, distortion <0.1%)

280W (± 65 power 8 ohm speaker, distortion <0.1%)

Frequency range: 20Hz-20KHz

Speaker: 4-8ohm

Voltage Magnification: 36 times

Input sensitivity 1.5V (RMS)

Output short circuit protection: Yes

That output DC bias protection speaker protection: Yes

Over-temperature protection: Yes, radiator FET temperature higher than 100 ° C, turn off the output!

Use precautions:

1. Rated supply voltage is ±65V, ±58---±70V range, do not over 70V! positive and negative do not pick wrong

2. Recommended power supply ±65V

3. Recommended 4-8Ω / 10-18inch speaker

4. Carefully check before electricity, ensure the wiring is correct.

Package list:

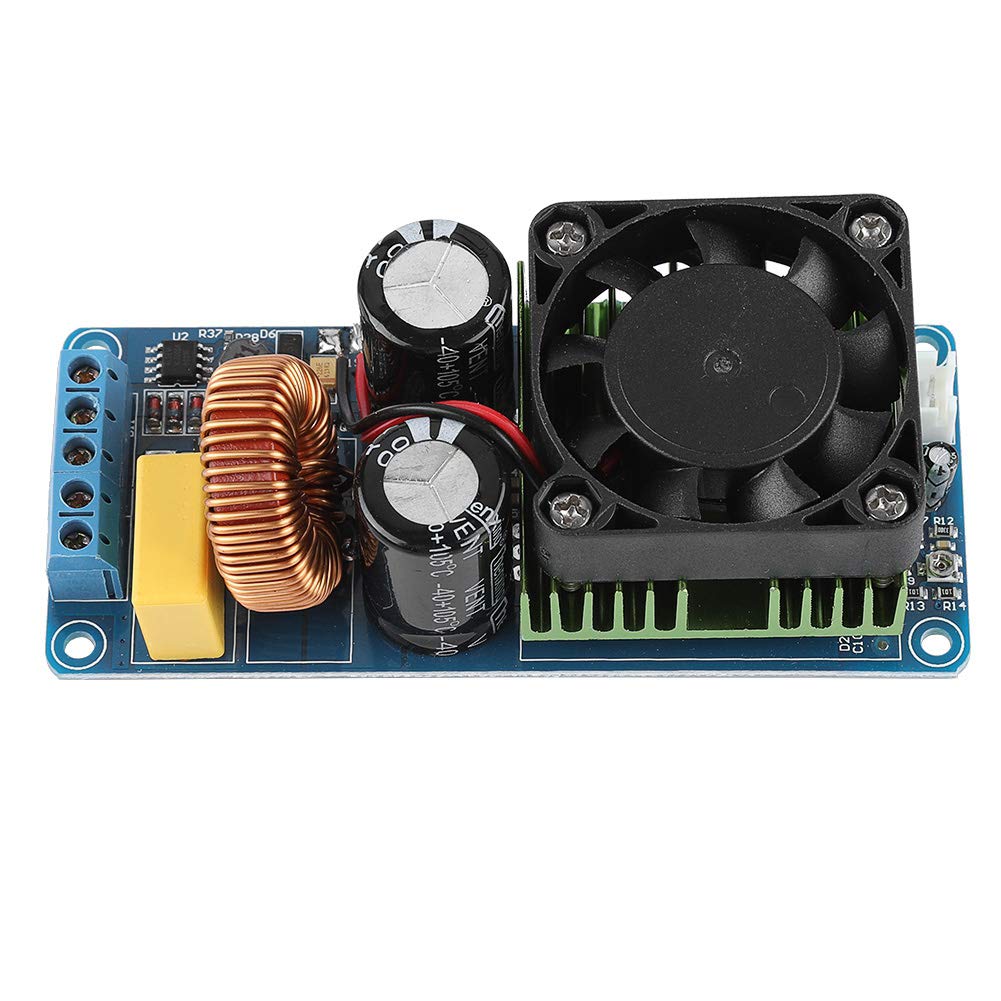

1 x Digital Amplifier
