Description

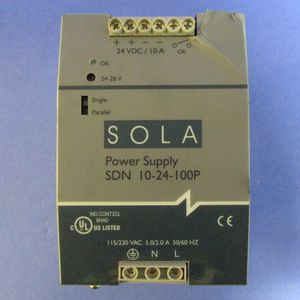

SDN Series DC Power Supplies (DIN Mounted) Class 1 Div. 2 Hazardous Locations Can be connected in parallel 24VDC output models are adjustable from 22.5 to 28VDCFeature narrow width on DIN rail for space-critical applications, rugged metal case, and DIN connector. Large, sturdy, multiple-point screw terminations for quick connection. High-efficiency
88%, switching power supply. Extra boost capacity for high inrush loads without foldback or shutdown. Auto-select voltage input. For industrial control and process control applications including DC input solenoids, valves, switches (prox switches), relays, PLCs, and sensors.UL and C-UL Listed, CSA and CE Certified. Meet SEMI F47 SAG Immunity.
Item: DC Power Supply
Input Voltage: 115 to 230VAC
Output Voltage: 24VDC
Power Rating: 240W
Output Amps: 10
Mounting: DIN Rail/Chassis
Style: Switching
Case Material: Metal Case
Height: 4.88"
Width: 3.26"
Depth: 4.55"
Series: SDN
Hz: 47 to 63
Phase - Electrical: 1
IP Rating: 20
Output Noise: Less Than 50mV
Hold Up Time: Greater Than 100 msec
Status Indicator: Green LED
NEMA Rating: 1
Features: Power Factor Correction, Improved Metal Mounting Clip, Adjustable Voltage, Parallel Capability Standard On All Units, Industrial Grade Design, Narrow Width On Rail For Space Critical Applications, User-Friendly Front Panel
Operating Temp. Range: -10 Degrees to 60 Degrees C
Standards: cUL us E61379, cRUus E137632 E234790, CE
88%, switching power supply. Extra boost capacity for high inrush loads without foldback or shutdown. Auto-select voltage input. For industrial control and process control applications including DC input solenoids, valves, switches (prox switches), relays, PLCs, and sensors.UL and C-UL Listed, CSA and CE Certified. Meet SEMI F47 SAG Immunity.
Item: DC Power Supply
Input Voltage: 115 to 230VAC
Output Voltage: 24VDC
Power Rating: 240W
Output Amps: 10
Mounting: DIN Rail/Chassis
Style: Switching
Case Material: Metal Case
Height: 4.88"
Width: 3.26"
Depth: 4.55"
Series: SDN
Hz: 47 to 63
Phase - Electrical: 1
IP Rating: 20
Output Noise: Less Than 50mV
Hold Up Time: Greater Than 100 msec
Status Indicator: Green LED
NEMA Rating: 1
Features: Power Factor Correction, Improved Metal Mounting Clip, Adjustable Voltage, Parallel Capability Standard On All Units, Industrial Grade Design, Narrow Width On Rail For Space Critical Applications, User-Friendly Front Panel
Operating Temp. Range: -10 Degrees to 60 Degrees C
Standards: cUL us E61379, cRUus E137632 E234790, CE
DIN Rail Power Supplies 240W 24-28VDC 10A
