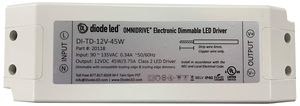

Diode LED DI-TD-12V-45W 45 Watt Omnidrive Electronic Dimmable LED Driver 12V DC

Welcome to Magnitude’s E-series UL Listed Dimmable Voltage LED Driver’s Video Installation guide Before you begin here are some guidelines: The driver has to be installed in accordance with Article 450 of the national electric code: it must be installed in a well ventilated area Free from explosive gases and vapors, with a free flow of air and by a qualified electrician. Make sure you have the right Driver for your lighting application Always check the driver’s label to make sure it has the proper input voltage of 120V and 12VDC output voltage. Check your light fixture Wattage to make sure it is not above the driver’s Max load. The Tools you need for the installation: UL Listed wire nuts 2 clamp connectors will be provided with every unit An optional MLV \ incandescent TRIAC dimmer switch. A 12VDC Dimmable LED Fixture or LED Strip. A wire stripper and a Philips-head screw driver. Mounti
