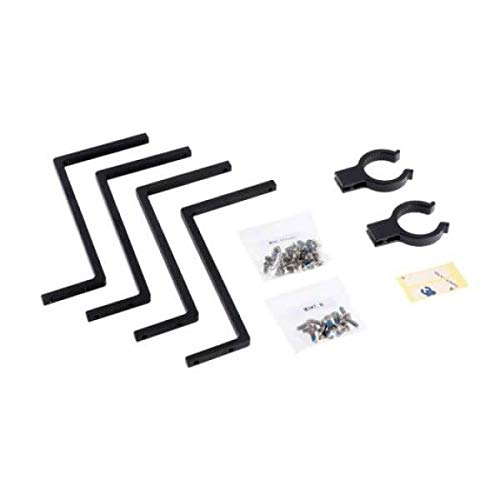

DJI D-RTK Mounting Bracket for Matrice 600 Drone

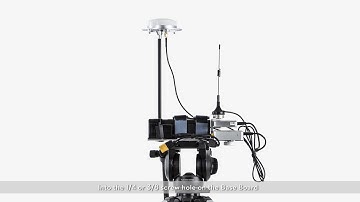

hello and welcome to this DJI tutorial video this video will show you how to install the dr TK module on the m600 first install the ground system mount the data link proact to the base board with 2m 2 point 5 by 5 screws place the dr TK ground system between the bracket and the base board align it with the screw holes and tighten the thumbscrew place the data link probe a station on the data link probe and tighten the thumbscrew there are three antenna brackets choose the longest antenna bracket to install the GNSS antenna insert the antenna bracket into the slot on the base board and tighten the thumbscrew mount the GNSS antenna on to the antenna bracket with 3m 3.0 by 8 screws run two pieces of velcro through the slots on the base board place the battery on the slot in the middle of the base board and secure it with the velcro either DJI intelligent batteries or three s 12 s unintelli
