Description
Parameters:
Audio input: stereo RCA
Audio output: stereo RCA
Working voltage: DC 9-12V 200mA
Backlight filament voltage: DC/AC 6-12V
Backlight filament current: 500μA
VU meter diameter: 35mm
Dimensions(L*W*H): 150*120*40mm / 5.91*4.72*1.57in
Net weight: 225g / 0.50lb
Package weight: 400g / 0.88lb
Warm tips:
1. Default setting that when GAIN is rotated to 50% position, VU meter's input voltage of the 0dB position is 0.775Vrms.
2. The VU meter is driven by an exponential gain algorithm, when the input volume is small, the swing amplitude of pointer is large, and when the volume gradually turns up, the swing amplitude of pointer is smaller.
Packing List:
1*VU meter
1*Power supply
1*Manual
Audio input: stereo RCA
Audio output: stereo RCA
Working voltage: DC 9-12V 200mA
Backlight filament voltage: DC/AC 6-12V
Backlight filament current: 500μA
VU meter diameter: 35mm
Dimensions(L*W*H): 150*120*40mm / 5.91*4.72*1.57in
Net weight: 225g / 0.50lb
Package weight: 400g / 0.88lb
Warm tips:
1. Default setting that when GAIN is rotated to 50% position, VU meter's input voltage of the 0dB position is 0.775Vrms.
2. The VU meter is driven by an exponential gain algorithm, when the input volume is small, the swing amplitude of pointer is large, and when the volume gradually turns up, the swing amplitude of pointer is smaller.
Packing List:
1*VU meter
1*Power supply
1*Manual

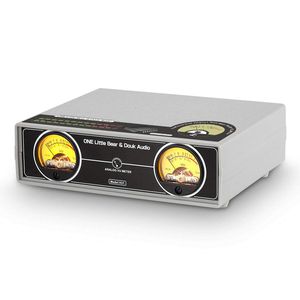

Douk Audio Analog VU Meter Panel DB Sound Level Indicator for Amplifier Preamp Preamplifier
