Description
Features:
1.System Resources CPU/MPU/Mainchip: MSD7816 (MIPS 34K600MHz) Flash memory: 32Mbit DDR-2 SDRAM: 512Mbit
2.Demultiplexer Standard: ISO/IEC 13818-1 Input Max. Bit Stream Rate: 120Mbps
3.Tuner Maxlinear high sensitive and reliable silicon tuner: MXL201 Input Frequency Range : VHF: 174~230MHz, UHF: 470~862MHz
IF Bandwidth : 6,7 or 8MHz
Input Signal Level : -85dBm ~ -20dBm
RF Input Connector: D-type connector(RF IN) Input impedance : 75¦¸
4.De-modulator Modulation mode : OFDM (Orthogonal Frequency Division Multiplexing)
Demodulation :256QAM, 64QAM, 16QAM and QPSK Guard interval : 1/4, 19/128, 1/8, 19/256, 1/16, 1/32, 1/128 FEC Code rates: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6
5.Connector RF Input: 1 x IEC169-2, Female RF Output: 1 x IEC169-2, Male
Digital Output: 1 x HDMI Analog Output: 1 x Scart
Digital Autio Output: 1 x
Coaxial USB: 1 x USB2.0 for upgrading, multi-media play, PVR and timeshifting
6.Environmental Conditions Input Voltage: AC200 ~ 240V Power Consumption: Max. 5W Stand-by Power Consumption: <0.5W Operating temperature: 0 ~ 45 degree
Package:

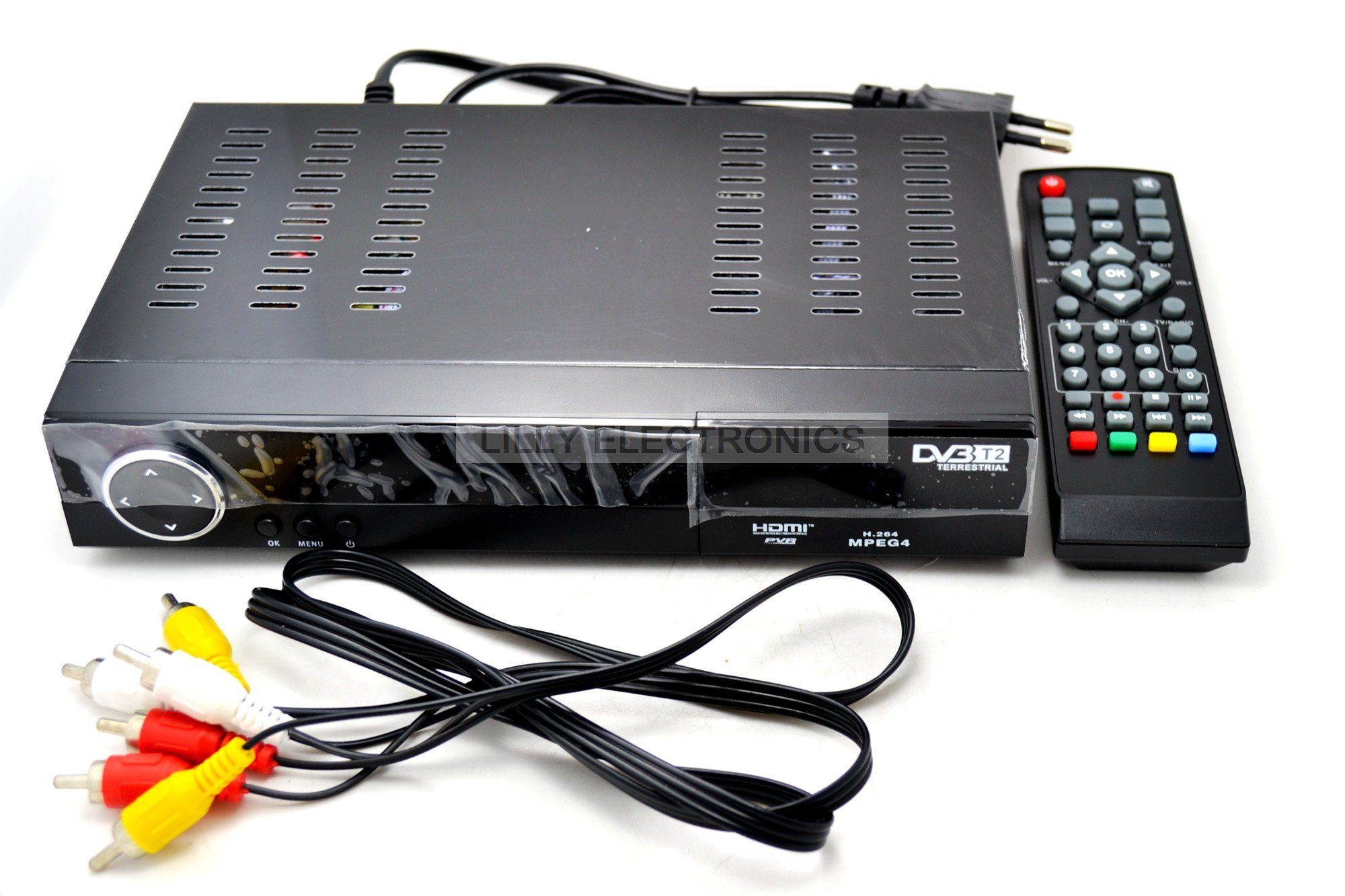

1* DVB-T2 HD MPEG4/H.264 Box Digital Video Broadingcast AC 200V ~ 240V
DVB-T2 HD MPEG4/H.264 Box Digital Video Broadingcast AC 200V-240v
Price is below average
Current Price
$33.1
Average
$45.29
Min Price
$33.1
Max Price
$57.48
Price dynamics
27%
Description
Features:
1.System Resources CPU/MPU/Mainchip: MSD7816 (MIPS 34K600MHz) Flash memory: 32Mbit DDR-2 SDRAM: 512Mbit
2.Demultiplexer Standard: ISO/IEC 13818-1 Input Max. Bit Stream Rate: 120Mbps
3.Tuner Maxlinear high sensitive and reliable silicon tuner: MXL201 Input Frequency Range : VHF: 174~230MHz, UHF: 470~862MHz
IF Bandwidth : 6,7 or 8MHz
Input Signal Level : -85dBm ~ -20dBm
RF Input Connector: D-type connector(RF IN) Input impedance : 75¦¸
4.De-modulator Modulation mode : OFDM (Orthogonal Frequency Division Multiplexing)
Demodulation :256QAM, 64QAM, 16QAM and QPSK Guard interval : 1/4, 19/128, 1/8, 19/256, 1/16, 1/32, 1/128 FEC Code rates: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6
5.Connector RF Input: 1 x IEC169-2, Female RF Output: 1 x IEC169-2, Male
Digital Output: 1 x HDMI Analog Output: 1 x Scart
Digital Autio Output: 1 x
Coaxial USB: 1 x USB2.0 for upgrading, multi-media play, PVR and timeshifting
6.Environmental Conditions Input Voltage: AC200 ~ 240V Power Consumption: Max. 5W Stand-by Power Consumption: <0.5W Operating temperature: 0 ~ 45 degree
Package:
1* DVB-T2 HD MPEG4/H.264 Box Digital Video Broadingcast AC 200V ~ 240V
