Description
Product parameters
★Input Current: DC 12V 2A(min)
★Output Current: 300mA/500mA/700mA/1000mA
★Output Voltage: 1.48V / 4.2V
★Discharger Current: 300mA/500mA
★USB output:5V/1000mA
★Standby Current: < 15mA
★Size: L * W * H/162*96*36mm
★For battery: 1.2V Ni-MH / Ni-CD to 3.7V Li-ion battery.For AA AAA 18650 26650 18490 18350 17670 17500 16340 RCR123 14500 IMR 10440
Instructions for use
●Charge: When you put the battery into the charger and turn on the power, the charger defaults to the charging mode. Only need to choose the charge current you need.
●Fasttest: Press and hold the Mode key for 3 seconds to enter the mode selection. Select Fasttest mode and press "current" to select the desired charging current. The charger will automatically complete the test, this time only need to wait for the test results.
●Nortest: Same operation as Fasttest.
Note:
■In the "Fasttest or Nortest" mode, if the choice of 300mA / 500mA charge current, then the charger default discharge current of 250mA. For energy saving time, it is recommended to select 700mA or 1000mA in "Fasttest or Nortest" mode. Because the discharge current at this time is 500mA.
■USB for the boost output, only 3.7V lithium-ion battery is valid, NiMH battery is invalid.The output current is 1000mA.USB is not output when the charger is powered up.
■About the test results: Charger tested out of the results for reference only, can not be used as any commercial and other proof. Internal resistance (mR) test results error is relatively large.
Product included:Lii-500 Charger + 12V / 2A adapter (US) + 12V Car cable.
Dear customers, the charger generates heat and some new machine smell when charging the battery. But it is all within the scope of normal and safe. Lii-500 charger features " high temperature protection, over charge protection ". It is a safe and reliable chargers.
★Input Current: DC 12V 2A(min)
★Output Current: 300mA/500mA/700mA/1000mA
★Output Voltage: 1.48V / 4.2V
★Discharger Current: 300mA/500mA
★USB output:5V/1000mA
★Standby Current: < 15mA
★Size: L * W * H/162*96*36mm
★For battery: 1.2V Ni-MH / Ni-CD to 3.7V Li-ion battery.For AA AAA 18650 26650 18490 18350 17670 17500 16340 RCR123 14500 IMR 10440
Instructions for use
●Charge: When you put the battery into the charger and turn on the power, the charger defaults to the charging mode. Only need to choose the charge current you need.
●Fasttest: Press and hold the Mode key for 3 seconds to enter the mode selection. Select Fasttest mode and press "current" to select the desired charging current. The charger will automatically complete the test, this time only need to wait for the test results.
●Nortest: Same operation as Fasttest.
Note:
■In the "Fasttest or Nortest" mode, if the choice of 300mA / 500mA charge current, then the charger default discharge current of 250mA. For energy saving time, it is recommended to select 700mA or 1000mA in "Fasttest or Nortest" mode. Because the discharge current at this time is 500mA.
■USB for the boost output, only 3.7V lithium-ion battery is valid, NiMH battery is invalid.The output current is 1000mA.USB is not output when the charger is powered up.
■About the test results: Charger tested out of the results for reference only, can not be used as any commercial and other proof. Internal resistance (mR) test results error is relatively large.
Product included:Lii-500 Charger + 12V / 2A adapter (US) + 12V Car cable.
Dear customers, the charger generates heat and some new machine smell when charging the battery. But it is all within the scope of normal and safe. Lii-500 charger features " high temperature protection, over charge protection ". It is a safe and reliable chargers.

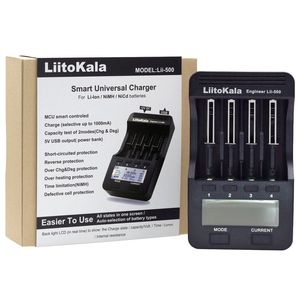

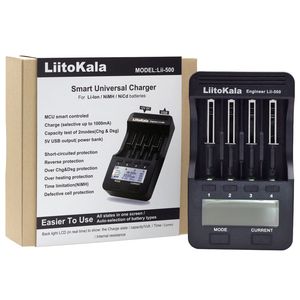

LiitoKala Lii-500 Battery charger for 18650 26650 AA AAA battery LCD display test the battery capacity
Price is below average
Current Price
$27.9
Average
$30.42
Min Price
$22.89
Max Price
$68.21
Price dynamics
8%
Description
Product parameters
★Input Current: DC 12V 2A(min)
★Output Current: 300mA/500mA/700mA/1000mA
★Output Voltage: 1.48V / 4.2V
★Discharger Current: 300mA/500mA
★USB output:5V/1000mA
★Standby Current: < 15mA
★Size: L * W * H/162*96*36mm
★For battery: 1.2V Ni-MH / Ni-CD to 3.7V Li-ion battery.For AA AAA 18650 26650 18490 18350 17670 17500 16340 RCR123 14500 IMR 10440
Instructions for use
●Charge: When you put the battery into the charger and turn on the power, the charger defaults to the charging mode. Only need to choose the charge current you need.
●Fasttest: Press and hold the Mode key for 3 seconds to enter the mode selection. Select Fasttest mode and press "current" to select the desired charging current. The charger will automatically complete the test, this time only need to wait for the test results.
●Nortest: Same operation as Fasttest.
Note:
■In the "Fasttest or Nortest" mode, if the choice of 300mA / 500mA charge current, then the charger default discharge current of 250mA. For energy saving time, it is recommended to select 700mA or 1000mA in "Fasttest or Nortest" mode. Because the discharge current at this time is 500mA.
■USB for the boost output, only 3.7V lithium-ion battery is valid, NiMH battery is invalid.The output current is 1000mA.USB is not output when the charger is powered up.
■About the test results: Charger tested out of the results for reference only, can not be used as any commercial and other proof. Internal resistance (mR) test results error is relatively large.
Product included:Lii-500 Charger + 12V / 2A adapter (US) + 12V Car cable.
Dear customers, the charger generates heat and some new machine smell when charging the battery. But it is all within the scope of normal and safe. Lii-500 charger features " high temperature protection, over charge protection ". It is a safe and reliable chargers.
★Input Current: DC 12V 2A(min)
★Output Current: 300mA/500mA/700mA/1000mA
★Output Voltage: 1.48V / 4.2V
★Discharger Current: 300mA/500mA
★USB output:5V/1000mA
★Standby Current: < 15mA
★Size: L * W * H/162*96*36mm
★For battery: 1.2V Ni-MH / Ni-CD to 3.7V Li-ion battery.For AA AAA 18650 26650 18490 18350 17670 17500 16340 RCR123 14500 IMR 10440
Instructions for use
●Charge: When you put the battery into the charger and turn on the power, the charger defaults to the charging mode. Only need to choose the charge current you need.
●Fasttest: Press and hold the Mode key for 3 seconds to enter the mode selection. Select Fasttest mode and press "current" to select the desired charging current. The charger will automatically complete the test, this time only need to wait for the test results.
●Nortest: Same operation as Fasttest.
Note:
■In the "Fasttest or Nortest" mode, if the choice of 300mA / 500mA charge current, then the charger default discharge current of 250mA. For energy saving time, it is recommended to select 700mA or 1000mA in "Fasttest or Nortest" mode. Because the discharge current at this time is 500mA.
■USB for the boost output, only 3.7V lithium-ion battery is valid, NiMH battery is invalid.The output current is 1000mA.USB is not output when the charger is powered up.
■About the test results: Charger tested out of the results for reference only, can not be used as any commercial and other proof. Internal resistance (mR) test results error is relatively large.
Product included:Lii-500 Charger + 12V / 2A adapter (US) + 12V Car cable.
Dear customers, the charger generates heat and some new machine smell when charging the battery. But it is all within the scope of normal and safe. Lii-500 charger features " high temperature protection, over charge protection ". It is a safe and reliable chargers.
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
Product review & video

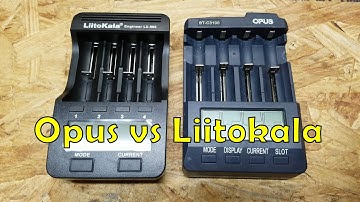

hey guys I have here a brand new Leto Cala 18 650 battery charger so we got the manual and here's the charger did not come with a power adapter there were a few options for the power adapters and I just picked none because I wanted to save a few bucks and I've already got 12 volt power supplies so what we're going to take a look at today is a very common statement I see being spread around several forums and DIY groups and that is that the Opus charger tests ten percent higher in terms of capacity versus the Lito Kalla now I don't know why people keep going around saying this because I haven't seen any evidence thus far I haven't seen anybody doing tests and comparing the two Chargers to see if they actually do test higher it seems just to stem from a few people who noticed it seems like their opus tests higher but we're gonna hopefully either disprove or maybe will prove that today we'
