Description
KT3102DM Silicon Transistors , epitaxial planar structure npn universal . Designed for use in low-frequency devices with low noise switching , amplifier and generator units of medium and high frequencies . The main technical characteristics of the transistor KT3102DM : The structure of the transistor : npn Pk max - Constant power dissipation Collector : 250 mW ; fgr - Cut-off frequency of the transistor current gain for the common-emitter : at least 150 MHz; Ukbo max - Maximum voltage collector-base for a given reverse current collector and emitter open circuit : 30 V; Uebo max - Maximum voltage emitter-base junction reverse current at a given emitter and collector open circuit : 5 V; Ik max - Maximum DC Collector Current : 100mA ; Ikbo - Reverse collector current - the current through the collector junction reverse voltage for a given collector-base and open emitter output : no more than 0,015 mA ( 50V ) ; h21e - Static current transfer ratio of the transistor small signal for the common-emitter : 200 ... 500 ; CK - collector junction capacity : up to 6 pF ; Rm - Noise Transistor no more than 4 dB at 1 kHz tc - time constant of the feedback loop at high frequency : less than 100 ps

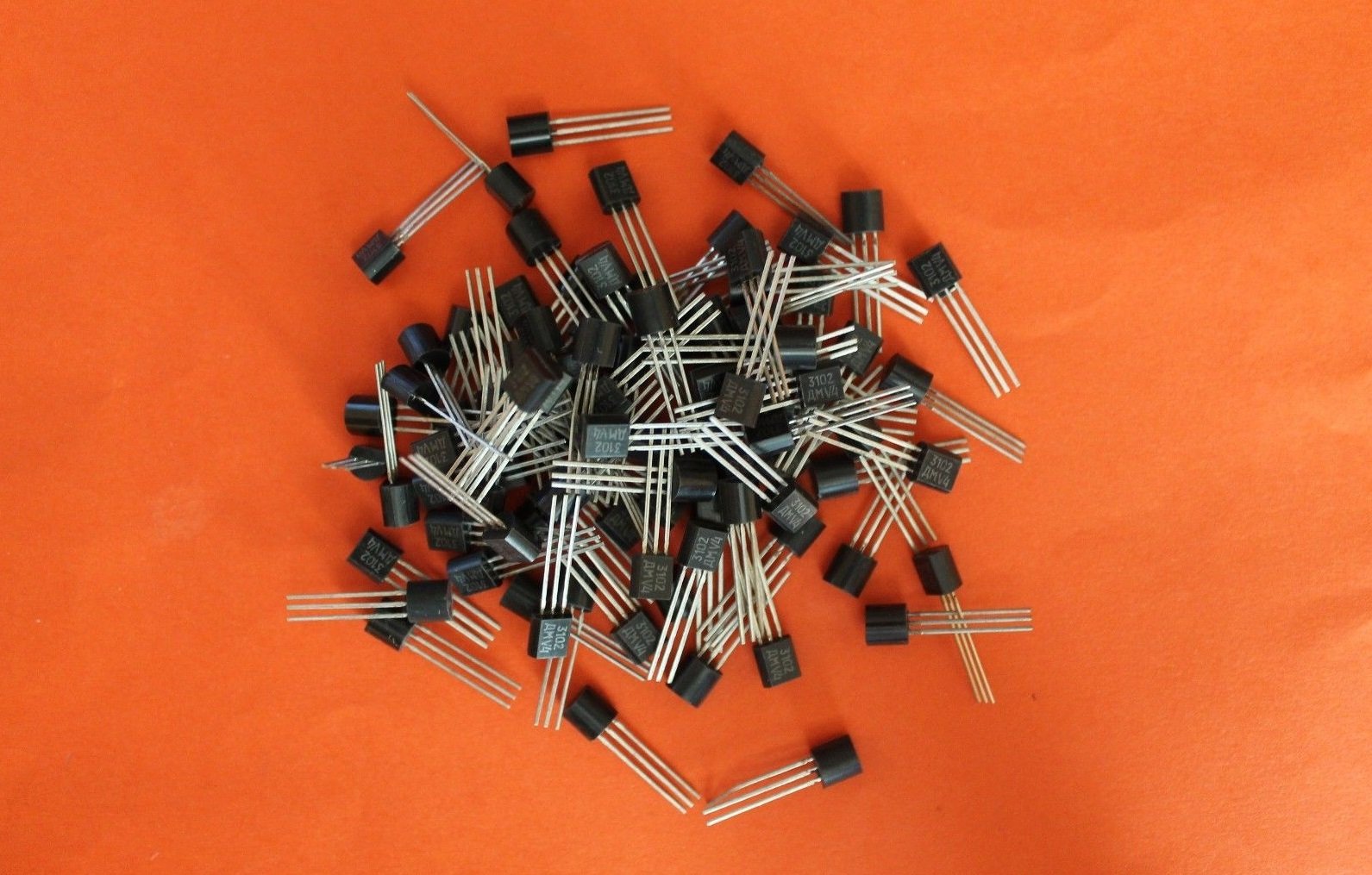

S.U.R. & R Tools Transistors silicon KT3102DM analogue BC549C USSR 50 pcs
Current Price
$11.5
Average
$11.5
Min Price
$11.5
Max Price
$11.5
Price dynamics
0%
Description
KT3102DM Silicon Transistors , epitaxial planar structure npn universal . Designed for use in low-frequency devices with low noise switching , amplifier and generator units of medium and high frequencies . The main technical characteristics of the transistor KT3102DM : The structure of the transistor : npn Pk max - Constant power dissipation Collector : 250 mW ; fgr - Cut-off frequency of the transistor current gain for the common-emitter : at least 150 MHz; Ukbo max - Maximum voltage collector-base for a given reverse current collector and emitter open circuit : 30 V; Uebo max - Maximum voltage emitter-base junction reverse current at a given emitter and collector open circuit : 5 V; Ik max - Maximum DC Collector Current : 100mA ; Ikbo - Reverse collector current - the current through the collector junction reverse voltage for a given collector-base and open emitter output : no more than 0,015 mA ( 50V ) ; h21e - Static current transfer ratio of the transistor small signal for the common-emitter : 200 ... 500 ; CK - collector junction capacity : up to 6 pF ; Rm - Noise Transistor no more than 4 dB at 1 kHz tc - time constant of the feedback loop at high frequency : less than 100 ps
