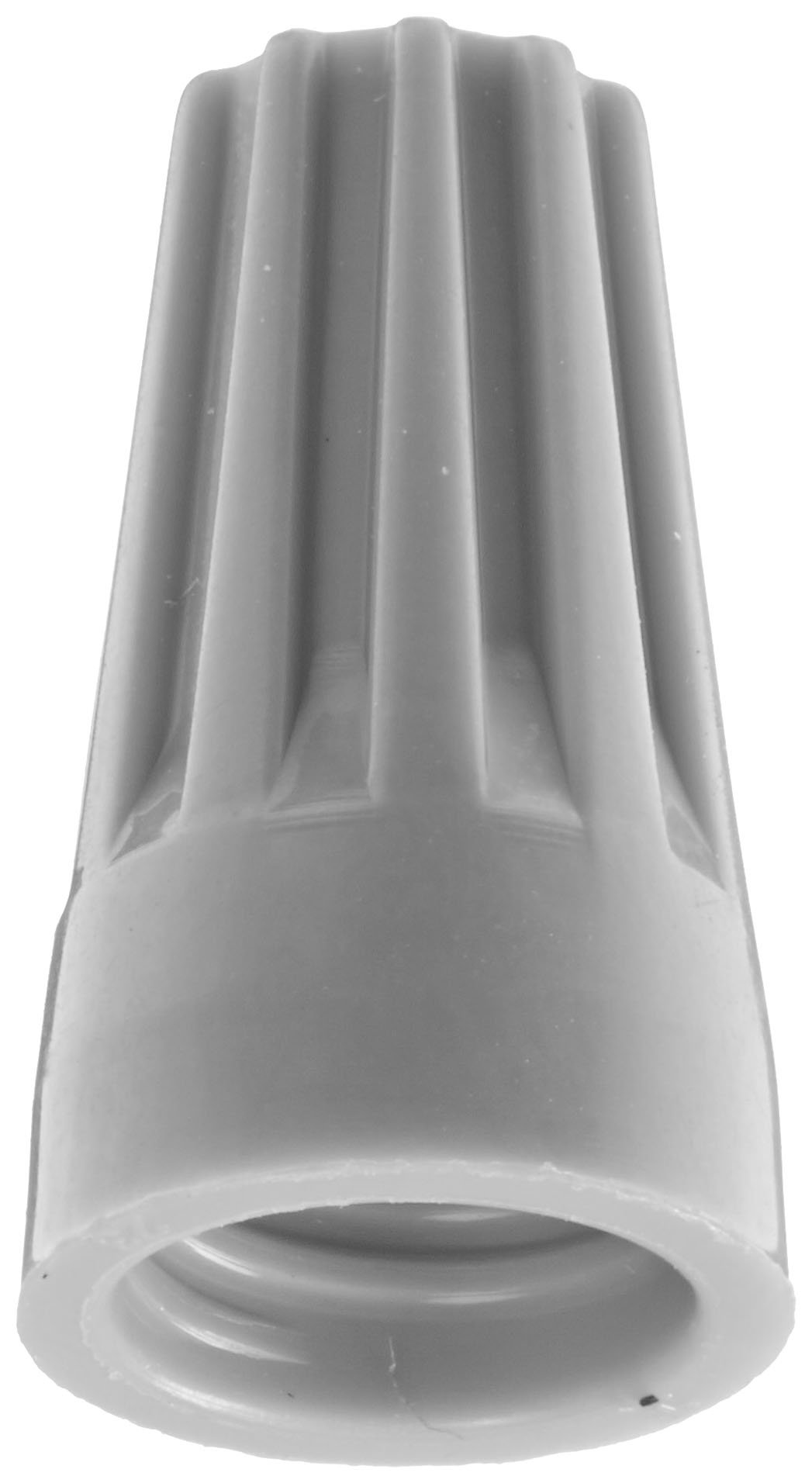

This NSi Industries WC-G-C Easy-Twist twist-on wire connector is suitable for joining copper conductors from American Wire Gauge (AWG) #22 to #14. It is made with a gray, flame-resistant thermoplastic shell for safety and electrical insulation, has a temperature rating of 105 degrees C (221 degrees F), and has a maximum voltage rating of 300V. The connector is fitted with a fixed, square wire spring for secure gripping of conductors. It meets Underwriters Laboratories (UL) standard 94 V-2 for flame resistance and is Canadian Standards Association (CSA) certified. This twist-on wire connector is suitable for a wide range of electrical connection and termination applications with appropriately sized conductors.
| Specifications | |
|---|---|
| Connector color | Gray |
| Wire size range | #22 to #14 AWG |
| Minimum wire combination | Two #22 AWG |
| Maximum wire combination | One #14 with one #20 AWG |
| Voltage rating | 300V |
| Standards met | UL standard 94 V-2, CSA certified |
NSi Industries manufactures electrical components and sensors, lighting products, and energy management products. The company, founded in 1975, is headquartered in Huntersville, NC.
Easy-Twist Twist-On Wire Connector, Standard Type, 22-14 AWG Wire Range, 300V, Grey (Box of 100)
This NSi Industries WC-G-C Easy-Twist twist-on wire connector is suitable for joining copper conductors from American Wire Gauge (AWG) #22 to #14. It is made with a gray, flame-resistant thermoplastic shell for safety and electrical insulation, has a temperature rating of 105 degrees C (221 degrees F), and has a maximum voltage rating of 300V. The connector is fitted with a fixed, square wire spring for secure gripping of conductors. It meets Underwriters Laboratories (UL) standard 94 V-2 for flame resistance and is Canadian Standards Association (CSA) certified. This twist-on wire connector is suitable for a wide range of electrical connection and termination applications with appropriately sized conductors.
| Specifications | |
|---|---|
| Connector color | Gray |
| Wire size range | #22 to #14 AWG |
| Minimum wire combination | Two #22 AWG |
| Maximum wire combination | One #14 with one #20 AWG |
| Voltage rating | 300V |
| Standards met | UL standard 94 V-2, CSA certified |
NSi Industries manufactures electrical components and sensors, lighting products, and energy management products. The company, founded in 1975, is headquartered in Huntersville, NC.
