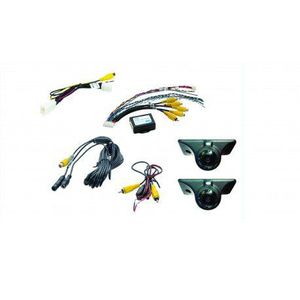

Echomaster FC-TTUN-SC Lane Change Assistance Kit for Select 2012-2013 Toyotas

[Music] interpretation of bsd installation put the calibration fabric behind the rear wheel make sure the outer fringe line on fabric is on the same line with the front and rear wheels mark the approximate radar locations on both sides at the rear of the vehicle and radar should be installed about 40 to 80 centimeters above the ground remove two screws on the rear bumper remove the left wheel water fender remove the screws at the bottom of the rear bumper remove the right wheel water fender loosen the edge of rear bumper [Music] pull the whole rear bumper down pay attention to the wiring harness terminals do not pull the rear bumper with too much force unplug wiring harness terminals clean the steel ruler to the surface of bracket [Music] steel ruler is perrault with the oblique line on the calibration fabric mark the location of holes on bracket with a mark pen punch holes at the marke
