Description
This power unit consists of high pressure gear pump,DC motor, multi-functional manifold, valves, tank, ect. It features stable performance and compact structure, and can be widely used in automotive, garden machineries, machine tools, logistics equipments etc.
SPECIFICATIONS:
Quart: 6 Quart
Reservoir: Metal Reservoir
Motor voltage: DC12V
Acting: Double-acting
1500 PS Max Relief Setting on B port
3200 PSI Max. Relief Setting for Increased Lifting Power on A port
Horizontal mount
Hand held pendant with 20 foot removal cord
Special Notes:
1.The duty of this power unit is S3, i.e., 30 seconds on and 270 seconds off.
2.Clean all the hydraulic parts concerned before mounting the power unit.
3.Viscosity of the hydraulic oil shoud be 15-68 cst,which should also be clean and free of impurities. N46 hydraulic oil is recommended.
4.Change the oil after the first 100 hours of running the power unit, then change the oil every 3000 hours.
Package Include:
1 x 12VDC 6Quart Double acting power unit
1 x Remote controlled pendan
1 x User manual
SPECIFICATIONS:
Quart: 6 Quart
Reservoir: Metal Reservoir
Motor voltage: DC12V
Acting: Double-acting
1500 PS Max Relief Setting on B port
3200 PSI Max. Relief Setting for Increased Lifting Power on A port
Horizontal mount
Hand held pendant with 20 foot removal cord
Special Notes:
1.The duty of this power unit is S3, i.e., 30 seconds on and 270 seconds off.
2.Clean all the hydraulic parts concerned before mounting the power unit.
3.Viscosity of the hydraulic oil shoud be 15-68 cst,which should also be clean and free of impurities. N46 hydraulic oil is recommended.
4.Change the oil after the first 100 hours of running the power unit, then change the oil every 3000 hours.
Package Include:
1 x 12VDC 6Quart Double acting power unit
1 x Remote controlled pendan
1 x User manual

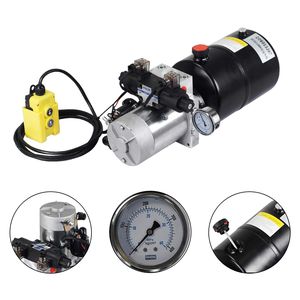

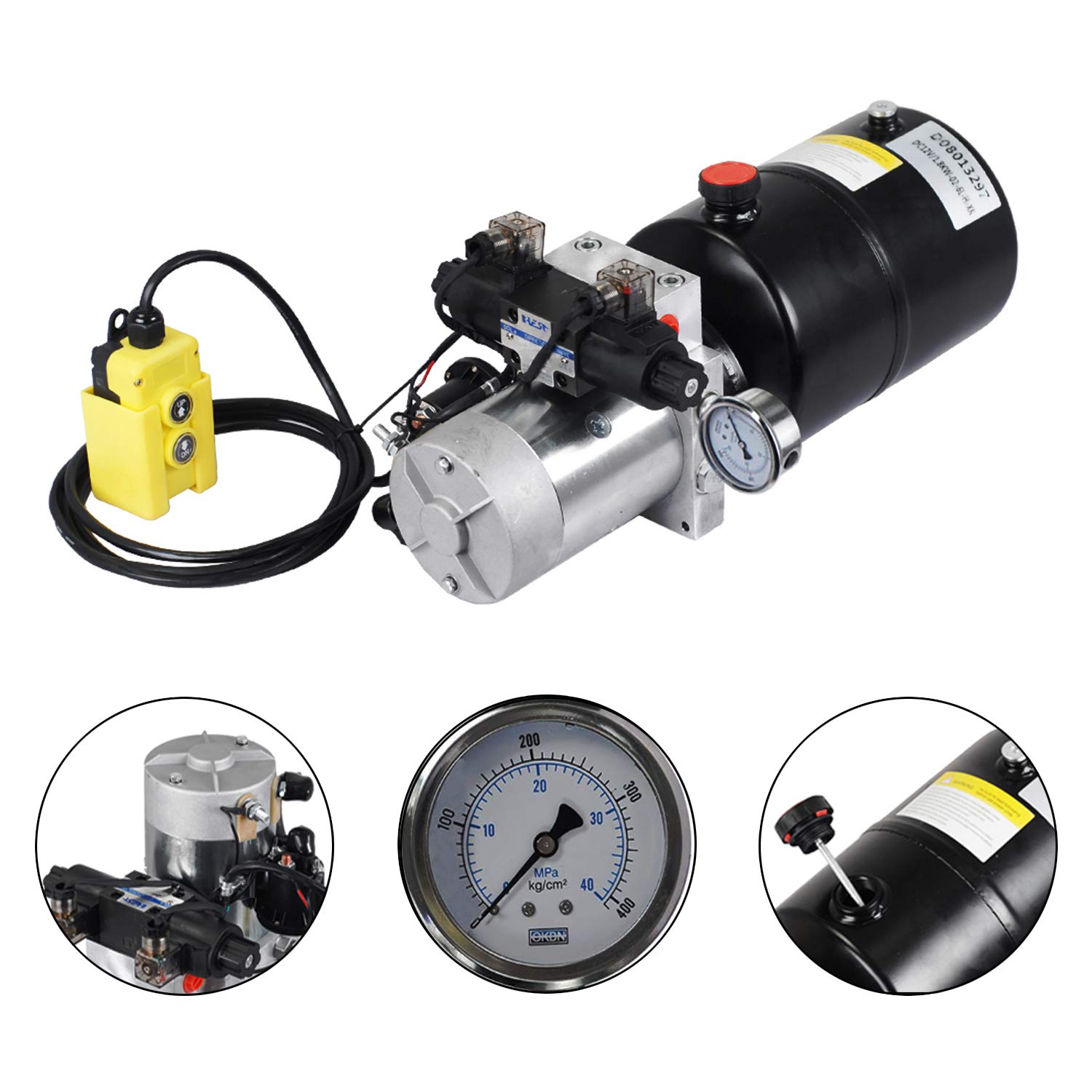

ECO LLC 6 Quart Double Acting 12V Hydraulic Power Unit 3200 PSI Max. Hydraulic Pump DC 12V Dump Trailer with Hydraulic Pressure Gauge(Round, with Steel Reservoir)
Current Price
$234.74
Average
$233.42
Min Price
$215.4
Max Price
$244.99
