Description

Contact Data:
Contact Material: AgSnO12
Contact Form: Normal Open
Contact Ratings: No: 200A 14/28VDC
Contact Resistance: 100mMax at 6VDC 1A
Max switching Current: 500A (5ms)
Max Switching Voltage: 75VDC
Max Switching Power: 2000W
Life Expectancy Electrical: 100,000 Operations (at 30 Operations/min)
Life Expectancy Mechanical: 10,000,000 Operations

Coil Specification:
Nominal Voltage(VDC): 24V
Coil Resistance (4.8W/2.4W): 120/240
Max Operate Voltage (VDC): 12.0~16.8
Mix Release (VDC): 2.4~7.2
Max Applicable Voltage (VDC): 31.2

Characteristics:
Temperature Range: -30°C ~+80°C
Vibration Resistance: 10~55Hz, 1.5mm
Shock Resistance:
Operations Extremes: 10g
Damage Limits: 100g
Humidity: 40%~85%
Insulation Resistance: 100m ohm Min at 500VDC
Safety Standard: CCEE
Dielectric Strength Between Open Contacts 500VAC (for one minute/sec)
Between Contact and coil: 750VAC (for one minute/sec)
Operate Time: 15ms
Release Time: 10ms

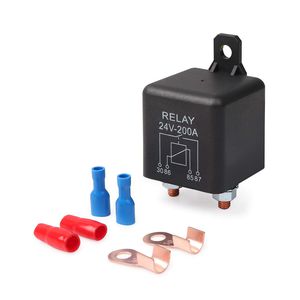

Ehdis 24V 200A Relays Car Truck Motor Automotive Boat Car Starter Heavy Duty Split Charge ZL180 with 2 Pin Footprint + 2 Terminal - [1 Set]

Price is below average

Current Price

$13.99

Average

$14.74

Min Price

$13.99

Max Price

$14.99

Price dynamics

5%

Description

Contact Data:
Contact Material: AgSnO12
Contact Form: Normal Open
Contact Ratings: No: 200A 14/28VDC
Contact Resistance: 100mMax at 6VDC 1A
Max switching Current: 500A (5ms)
Max Switching Voltage: 75VDC
Max Switching Power: 2000W
Life Expectancy Electrical: 100,000 Operations (at 30 Operations/min)
Life Expectancy Mechanical: 10,000,000 Operations

Coil Specification:
Nominal Voltage(VDC): 24V
Coil Resistance (4.8W/2.4W): 120/240
Max Operate Voltage (VDC): 12.0~16.8
Mix Release (VDC): 2.4~7.2
Max Applicable Voltage (VDC): 31.2

Characteristics:
Temperature Range: -30°C ~+80°C
Vibration Resistance: 10~55Hz, 1.5mm
Shock Resistance:
Operations Extremes: 10g
Damage Limits: 100g
Humidity: 40%~85%
Insulation Resistance: 100m ohm Min at 500VDC
Safety Standard: CCEE
Dielectric Strength Between Open Contacts 500VAC (for one minute/sec)
Between Contact and coil: 750VAC (for one minute/sec)
Operate Time: 15ms
Release Time: 10ms

According to the data, price will be lower in next two weeks, so not waste your money and track better price!
