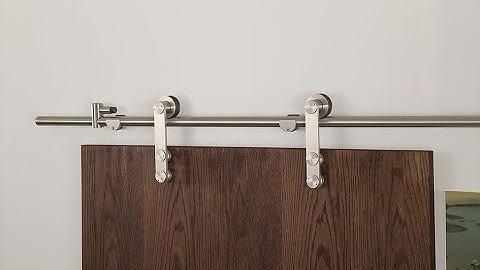

lydendor hardware is a great space-saving alternative and can be applied to any door structure in a few easy steps remember this video is meant to serve as a guide only please take extra consideration when planning your own custom installation here is a look at the hardware first we'll start by prepping the door a floor bracket is provided to help the door stay on track and prevent it from making contact with the wall this means you will need to route out the underside of the door so it can slide over the bracket the bracket is 3/4 of an inch high overall so in order to have the door slide freely over the posts a channel needs to be routed for the length of the door at one quarter inch wide by 1/2 to 3/4 of an inch deep depending on your suspension height off the floor now we will fasten the brackets the spacing for your brackets is dependent largely on the width of your door so measure
