Input voltage 14~80V,output 12V

Maximum output current 0.75A

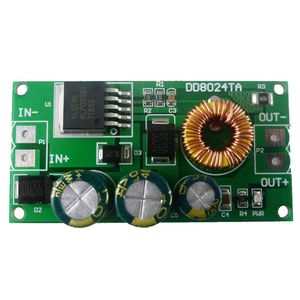

DC-DC high-voltage Step-Down Converter module working frequency 150KHz.

Maximum conversion efficiency is 85% .

Quiescent current: about 2.5mA

Operating Temperature : -40°C to +85°C

Size : 59 x 30 x 16mm

Weight : 15.5g;

Features :

1 Input reverse polarity protection

2 TVS overvoltage protection

3 High frequency filter capacitor

4 High Q value 100UH inductance

5 Output overcurrent protection

6 Over temperature protection

7 Output short circuit protection

Attention :

This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range

2 Output power can not be greater than the maximum load for a long time

3 Input power must be greater than the output power, because the power consumption of the module itself

Applications:

EBike Electric bicycle motorcycle

Ebike Controller Power Supply

DC 80V 72V 64V 60V 48V 36V 24V 18V

CCTV camera

RS485 Modbus equipment

Motor Toy Wifi Router

Telecom / Networking Equipment

Multimeter instrumentation

Mortor Electric toys

Smart home / home automation

Battery powered equipment
