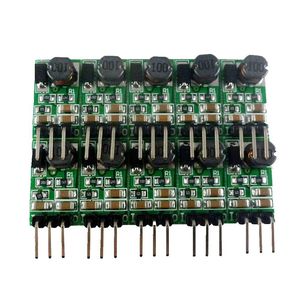

Description:

Input voltage 6.5~40V,output 5V

Maximum output current 1A

DC-DC Step-Down Converter module working frequency 550KHz. efficiency is 75-90% .

Quiescent current: about 1.5MA

Overtemperature shutdown, input under-voltage protection, BS-voltage protection, and short circuit protection.

2.54mm pin pitch, Arduiuo UNO MEGA2560 Breadboard MCU Development Board friendly

Size 18.3mm x 10.2mm x 6.7mm( small)

Weight : about 1.1g(Very light)

Attention :

This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range

2 Output power can not be greater than the maximum load for a long time

3 Input power must be greater than the output power, because the power consumption of the module itself
