Description

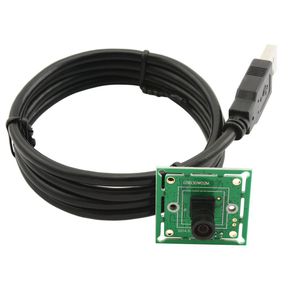

ELP-USB30W02M-MHV100 is a Mini Size (32*32/26*26mm) 640X480 VGA usb camera with M7 100 degree wide angle Lens
Specification:
Sensor OV7725
Lens Size 1/4 inch
Pixel Size 6.0um X 6.0um
image area 3984m x 2952m
Max. Resolution 640(H)X480(V)
Compression format MJPEG / YUV2(YUYV)
Resolution & frame 640X480 MJPEG@ 60fps YUY2@ 30fps
480X480 MJPEG@ 30fps YUY2@ 30fps
450X450 MJPEG@30fps YUY2@ 30fps
352X288 MJPEG@ 30fps YUY2@ 30fps
320X240 MJPEG@30fps YUY2@ 30fps
240X240 MJPEG@ 30fps YUY2@ 30fps
S/N Ratio 50dB
Dynamic Range 60dB
Sensitivity 3.8V/lux-sec@550nm
Mini illumination 0. 2lux
Shutter Type Electronic rolling shutter / Frame exposure
Connecting Port type USB2.0 High Speed
Free Drive Protocol USB Video Class(UVC)
AEC Support
AEB Support
AGC Support
Adjustable parameters Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,White balance, Backlight Contrast, Exposure
Lens Parameter Standard M7 LENS FOV(D)138 (H)100 Degree
Night vision Need to equipped IR Sensor Lens and IR LED Board
LED board power connector Support 2P-2.0mm socket
Power supply USB BUS POWER 4P-2.0mm socket
Power supply DC5V
Operating Voltage 100mA~160mA
Working current -10~70℃
Working temperature -20~85℃
Board size /Weight 32X32mm(Compatible 26X26mm)/ about 30g
Cable Standard 1M
Operating system request WinXP/Vista/Win7/Win8 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC
