Features:

Start pressure is 1-1.5 bar, and maximum working pressure can be up to 10 bar.

The pressure gauge checks the starting pressure value and the pressure in the system. Verifies any possible presence of water leakage in the very system.

Specifications:

Product number: EPC-4
Voltage:110V
Frequency: 50/60Hz
Max. current: 10A
Max. power: 1.1KW
Start pressure setting: 1bar-1.5bar
Max. working pressure: 10bar
Connection thread: R1"
Protection grade: IP65
Max. working temperature: 55 ℃
Wiring requirements: 7.5-9mm

Size: 19.5 x 9.3cm /7.68 x 3.66in
Weight: 632g

Package included:

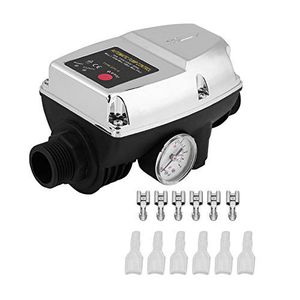

1 x Pressure Controller

1set x Accessories

1 x Manual
