Description

Overview:

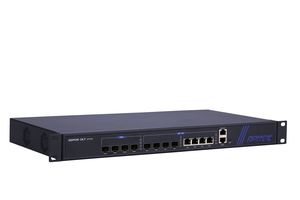

APT104 (EPON OLT) has very high cost-performance ratio，it fulfills the standard IEEE 802.3ah protocol's requirements and support China Telecom EPON device technical requirements' V2.0, V2.1 and V3.0 standard. It allows different kinds of ONU to connect. The FTTB or FTTH optical network can be constructed by collocation of ONU and ODN. The uplink port of device supporting ring protection (<20ms). This device could be used in residence block's Internet, communication and monitoring area.

APT104 used19 inches 1U standard chassis，front-back outlet，supporting AC 100~240V power input，integrative front business and management port, post placed power. It provides 4 EPON ports, 8 GE uplink port ( include 4 optical port and 4 10/100/1000Bast-T electrical port), 1 Console port and 1 out-of-band management network port.

Product features:
1) 19 inches standard width、1U height
2) EPON ports x 4、GB business uplink ports x 8 (4 optical, 4 electrical)、Console port x 1、Out-of-band management network port
3) Allows 256 ONUs connection simultaneously
4) Support <20ms ring protection
5) Fulfills the standard IEEE 802.3 ah protocol's requirements' V2.0,V2.1 and V3.0 standard
6) Support ONU up-down line alarming,ring network alarming and port status change alarming
7) Support ONU data exchange at the same PON port
8) Support inter-PON-port physical isolation,pore one-to-one transmission and port-isolated group partition
9) Support IEEE 802.1q VLAN,QinQ configuration
10) Support mutil-cast management（IGMP-Snooping/Proxy）
11) Support uplink port aggregation
12) Support port mirroring
13) Support RSTP（RSTP）
14) Support access control
15) Support traffic stom control
16) Support ONU certification
17) Support serial-pport and TELNET's CLI management and joint NMS management
18) Support remote system update,ONU batch update,system log management and customized change
