Features:
1. This audio power amplifier uses LM1875T chip, a simple external circuit,the audio signal is amplified.
2. Dual DC power input, do not support single power supply.
3. The coupling capacitor can take all capacitors from 2.5mm to 10mm.
4. The 330pF capacitor, which is used to absorb the over-high frequency clutter in audio signals, has been replaced by a sequential chip capacitor with a single-flower capacitor with better performance.
5. 100nF capacitor for power supply decoupling, has also been converted to monolithic capacitor, and vertical design and installation, only 2m away from the power supply lead!

Description:
This audio power amplifier uses LM1875T chip, support dual DC power input,
can take all capacitors from 2.5mm to 10mm,ideal tool for PCB and DIY making.

Note:
Products without a radiator, you may need to purchase additional radiator.

Specification:
Color:blue
Output Power: Typical 20W (maximum 30W)
Speaker Impedance: 4Ω-8Ω
Total harmonic distortion: <0.04%
SNR: 105dB
Frequency response: 14Hz-100kHz(RC low-pass circuit considered by the maximum range 3.29Hz-482.29kHz)
Supply voltage: Recommended ± 25V
Size: 46 x 37mm
Weight:5g

Package Information:
Package size:118 x 100 x 30mm/4.65 x 3.94 x 1.18in
Package Weight: 21g/0.73oz
Polybag Package

Package Included:

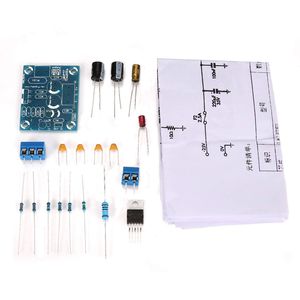

1 x Mono Channel LM1875T Stereo Audio Amplifier Board Module DIY Kit
