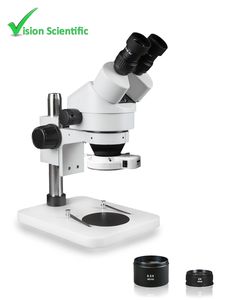

This Vision Scientific binocular zoom stereo microscope is ideal for laboratory, industrial or medical applications. Using its high resolution, great depth, and a large field of view, it is the perfect instrument for viewing any three-dimensional or temperature-sensitive specimen or object.

The compact, thin design of the large base provides added comfort for the user and allows sample positions to remain low, which provides easy accessibility to variable light controls.

Rugged cast aluminum with gray enamel finish. Packed in a fitted Styrofoam box, and includes a dust cover and an instruction manual.

Specifications

• Head: Binocular, 45° inclined, rotates 360°
• Eyepiece: 10x WF / 20mm high eye point
• Zoom Range: 0.7x—4.5x, 1:6.4 zoom ratio
• Magnification Range: 7x—45x, 5x—90x with the 0.5x & 2x auxiliary Lens
• Working Distance: 100 mm standard, optical working distance can be increase or decrease 30-165 mm with auxiliary lens
• Stage: Black & white reversible stage plate with a pair of stage clips
• Stand: Pillar stand
• Light Source: 144-LED ring light with intensity control
• Overall Dimensions: 15” x 14” x 10” / Weight: 10 lbs

Warranty

• 5 year limited warranty excluding bulbs

Packing List

• Binocular zoom stereo microscope head
• Pair of 10x WF eyepieces
• Pillar stand
• Focusing arm
• Pair of eye guards
• One dust cover
• User manual
• 5x and 2x auxiliary lens
• 144-LED ring light with intensity control
• Power adaptor

Shipping Information

• 16” x 15” x 11”
• 11 lbs
