Description:

- Wide range input voltage range
- Full load aging test
- Compact size, high efficiency, ultra low output ripple
- Overload, short circuit and over temperature protection function
- Widely used in switching equipment, access equipment, mobile communications, microwave communications, and optical transmission, routers and other communications fields, automotive electronics, etc.

Specification:

- Output Voltage: 10V
- Rated Current: 12A
- Current Range: 0-12A
- Ripple:<240mVp-p
- Output Accuracy: ±1%
- Rated Power: 36W
- Input Voltage Range: 100~264VAC
- Input Current:<0.2A (average current 0.25~0.5A)
- Frequency Range: 47~63Hz
- Efficiency: 84%
- Start Impact Current: COLD START<50A/230VAC
- Leak Current:<5mA/220VAC
- Over Power Protection: 150~170% rated power, malfunction remove and auto recover
- Over Voltage Protection: VH1: >50%
- DC Short Circuit Protection
- Size : 126x62x35mm/4.96x2.44x1.38inch

Package Includes:

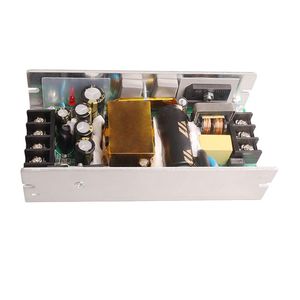

1 Piece Switching Power Supply Board
