Camera
Image Sensor: 1/3" CMOS
Effective Pixels: 2592(H) x 1520(V)
RAM/ROM: 1024M/128M
Electronic Shutter Speed: 1/1s~1/30,000s
Minimum Illumination: Color: 0.05Lux@F1.6; 0Lux@F1.6(IR on)
S/N Ratio: More than 55dB
IR Distance: Distance up to 100m (328ft)
IR On/Off Control: Auto/Manual
IR LEDs: 4
Lens
Focal Length: 4.5mm~135mm
Max. Aperture: F1.6 ~ F4.4
Angle of View: H: 60° ~ 2.2°
Optical Zoom: 30x
Focus Control: Auto/Manual
Close Focus Distance: 100mm~ 1000mm
PTZ
Pan/Tilt Range: Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°,auto flip 180°
Manual Control Speed:Pan: 0.1° ~300° /s; Tilt: 0.1° ~200° /s
Preset Speed: Pan: 400° /s; Tilt: 300° /s
PTZ Mode: 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Video
Compression: H.265+/H.265/H.264+/H.264
Streaming Capability: 3 Streams
Bit Rate Control: CBR/VBR
Bit Rate: H.265/H.264: 448K ~ 8192Kbps
Region of Interest: Support
Electronic Image Stabilization (EIS): Support
Defog: Support
Digital Zoom:16x
Flip:180°
Privacy Masking: Up to 24 areas
Network
Ethernet: RJ-45 (10Base-T/100Base-TX)
Interoperability: ONVIF, PSIA, CGI
Max. User Access: 20 users
Web Viewer: IE, Chrome, Firefox, Safari
Management Software: Smart PSS, DSS, DMSS
Smart Phone: IOS, Android
Interface
Video Interface: N/A
Audio Interface: 1/1
Alarm I/O: 2/1
Electrical
Power Supply: AC24V/3A(±10%), PoE+(802.3at)
Power Consumption: 13W,23W (IR on)
Environmental
Operating Conditions: -40°C ~ 70°C (-40°F ~ +158°F) / Less than 90% RH
Ingress Protection: IP66
Construction
Casing: Metal
Dimensions: Φ186(mm) x 309(mm)
Net Weight: 3.5kg(7.72lb)
Gross Weight: 6.8kg(14.99lb)

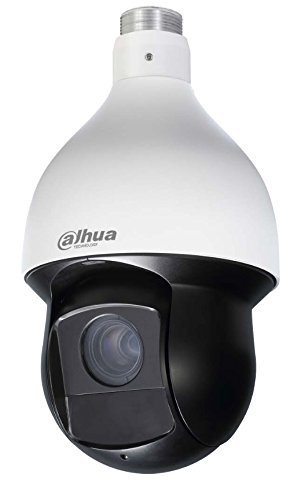

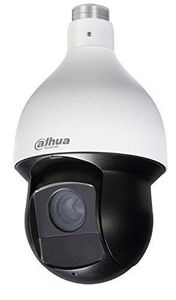

for Dahua PTZ IP Camera SD59430U-HNI 4MP 30x IR PTZ Network Dome Camera 4.5mm~135mm 30x Optical Zoom H.265 PoE+ IP66 ONVIF English Version
Camera
Image Sensor: 1/3" CMOS
Effective Pixels: 2592(H) x 1520(V)
RAM/ROM: 1024M/128M
Electronic Shutter Speed: 1/1s~1/30,000s
Minimum Illumination: Color: 0.05Lux@F1.6; 0Lux@F1.6(IR on)
S/N Ratio: More than 55dB
IR Distance: Distance up to 100m (328ft)
IR On/Off Control: Auto/Manual
IR LEDs: 4
Lens
Focal Length: 4.5mm~135mm
Max. Aperture: F1.6 ~ F4.4
Angle of View: H: 60° ~ 2.2°
Optical Zoom: 30x
Focus Control: Auto/Manual
Close Focus Distance: 100mm~ 1000mm
PTZ
Pan/Tilt Range: Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°,auto flip 180°
Manual Control Speed:Pan: 0.1° ~300° /s; Tilt: 0.1° ~200° /s
Preset Speed: Pan: 400° /s; Tilt: 300° /s
PTZ Mode: 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Video
Compression: H.265+/H.265/H.264+/H.264
Streaming Capability: 3 Streams
Bit Rate Control: CBR/VBR
Bit Rate: H.265/H.264: 448K ~ 8192Kbps
Region of Interest: Support
Electronic Image Stabilization (EIS): Support
Defog: Support
Digital Zoom:16x
Flip:180°
Privacy Masking: Up to 24 areas
Network
Ethernet: RJ-45 (10Base-T/100Base-TX)
Interoperability: ONVIF, PSIA, CGI
Max. User Access: 20 users
Web Viewer: IE, Chrome, Firefox, Safari
Management Software: Smart PSS, DSS, DMSS
Smart Phone: IOS, Android
Interface
Video Interface: N/A
Audio Interface: 1/1
Alarm I/O: 2/1
Electrical
Power Supply: AC24V/3A(±10%), PoE+(802.3at)
Power Consumption: 13W,23W (IR on)
Environmental
Operating Conditions: -40°C ~ 70°C (-40°F ~ +158°F) / Less than 90% RH
Ingress Protection: IP66
Construction
Casing: Metal
Dimensions: Φ186(mm) x 309(mm)
Net Weight: 3.5kg(7.72lb)
Gross Weight: 6.8kg(14.99lb)
