Description

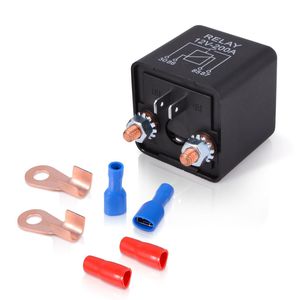

Product Description: Name: 12V 200A SPST Car relays with accessories.
Application:
Used for Remote start, Auto, Marine, Motorcycle, Truck, SUV applications.
You can use this relay to power lighting on a car, turn on your radio, remote start, starter kill, Trunk pop, door locks, dome light turn-on,
use to honk a horn with an alarm, reverse polarity, turn on.
Package include:
1x 12V 200A SPST Relay
1x Terminals 4 pin
1x Wire Connection Plug
5x Wire zip ties 10CM length
CONTACT DATA: Contact Material: AgSnO12
Contact Form: 1H(1A)
Contact Ratings: NO:200A 28VCD
Contact Resistance: 100mMax at6VCD 1A
Max Switching Current: 300A(5ms)
Max Switching Voltage: 75VCD
Max Switching Power: 2000W
Life Expectancy Electrical: 100,00 Operations (at30 Operations/Minute)
Life Expectancy Mechanical: 10,000,000 Operations
COIL SPECIFICATION:
Nominal Voltage(VCD):12
Coil Resistance(Ω):4.8W/30
Max Operate Voltage (VCD):6.0-8.0
Mix Release Voltage (VCD):1.2~3.6
Max Applicable Voltage(VCD):15.6
CHARACTERISTICS:
Temperature Range: -30~+80°C
Vibration Resistance: 10-55Hz,1.5mm
Hunidity:40%~85%
Insulation resistance: 100m Ω Min at 500VDC
Dielectric Strength Between Open Contacts:500VAC (for one minute/see)
Between Contact and coil: 750VAC (for one minute/see)
Operate Tice: 7ms
Release Tice:5ms
Application:
Used for Remote start, Auto, Marine, Motorcycle, Truck, SUV applications.
You can use this relay to power lighting on a car, turn on your radio, remote start, starter kill, Trunk pop, door locks, dome light turn-on,
use to honk a horn with an alarm, reverse polarity, turn on.
Package include:
1x 12V 200A SPST Relay
1x Terminals 4 pin
1x Wire Connection Plug
5x Wire zip ties 10CM length
CONTACT DATA: Contact Material: AgSnO12
Contact Form: 1H(1A)
Contact Ratings: NO:200A 28VCD
Contact Resistance: 100mMax at6VCD 1A
Max Switching Current: 300A(5ms)
Max Switching Voltage: 75VCD
Max Switching Power: 2000W
Life Expectancy Electrical: 100,00 Operations (at30 Operations/Minute)
Life Expectancy Mechanical: 10,000,000 Operations
COIL SPECIFICATION:
Nominal Voltage(VCD):12
Coil Resistance(Ω):4.8W/30
Max Operate Voltage (VCD):6.0-8.0
Mix Release Voltage (VCD):1.2~3.6
Max Applicable Voltage(VCD):15.6
CHARACTERISTICS:
Temperature Range: -30~+80°C
Vibration Resistance: 10-55Hz,1.5mm
Hunidity:40%~85%
Insulation resistance: 100m Ω Min at 500VDC
Dielectric Strength Between Open Contacts:500VAC (for one minute/see)
Between Contact and coil: 750VAC (for one minute/see)
Operate Tice: 7ms
Release Tice:5ms
FOSHIO Auto Start Relay Heavy Duty Split Charge Relay Switch 12V 200A SPST 4pin Relay with Terminals and Wire Connection Lug
Price is below average
Current Price
$10.99
Average
$12.99
Min Price
$10.99
Max Price
$15.99
