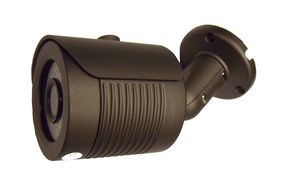

This professional IR Bullet security camera employs 1/3" Sony 1.4 Megapixel CMOS Sensor and an advanced circuit design. It adopts advanced image processing technology. The resolution is as high as 1000 TV lines, which ensures clear and bright pictures. Built-in 3.6mm fixed lens, effectively extend your observation range. With 24 pcs IR infrared LEDs, it has 65 feet IR range, can change from color to black automatically and take clear picture during both day- and night-time. The Smart IR function also enables it to catch clear face picture during nigh time. The camera has IP66 fully weatherproof rate and vandal proof metal housing. It's easy to install. It can protect your office or home effectively.
Specification
Model No.: DC-F1036
Image Sensor: 1/3" Sony 1.4 Megapixel CMOS Sensor
Effective Pixel count 1305 x 1049 with Max 1049 Scan Line
Signal System: NTSC
Scanning System: 2:1 Interlaced
Sync System: Internal
Day/Night: Auto (auto ICR)
Resolution: 1000 TV Lines
Mini Illumination: 0 lux when IR on
White Balance: AUTO
Gain Control: AUTO
S/N Ratio: More than 47dB
Electronic Shutter: Auto (1/50~1/12,000 second)
Gamma Correction: 0.45
Lens: 3.6mm
IR LED: 24PCS, 65ft (20m) IR distance
Weather Proof rate: IP66
Operation Temp: 14°F~122°F (-10°C~50°C)
Video Output: Composite BNC 1.0Vp-p, 75Ω
Power: DC12V±1V
Consumption: IR off(50mA), IR on(160mA)
Dimension: 5.82" x 2.56" x 2.48" (148(W) x 65(H) x 63(D)mm)
Weight: 1.1 lbs (500g)
What's in the box?
Bullet security camera x 1
