Applicable to measure the transmittance or haze of all kinds of transparent, translucent samples with parallel plane (such as automobile manufacturing, aerospace, glass products, plastic sheet, sheet, etc). Also can be used to determine the turbidity or clarity of liquid sample (water, drinks and so on).
Features:
- Digital display, wide measurement range, high resolution
- Accurate & reliable reading results
- One key calibration, easy to use.
- Solid structure, small volume, light weight, exquisite, easy to carry
- Continuous measuring mode
- Can connect with PC computer by the optional cable and the software for RS232C interface (not included in the set).
- Designed in accordance with GB 2410-80, ASTM D1033-61, JIS k7105-81 and other standards
Specifications:
- Display: 10mm LCD
- Resolution: 0.1
- Accuracy: less than equal 2 %
- Wavelength: 550 Nanometers
- Measurement Range: 0~100 % Light Transmission
- Interface: RS-232C (optional, not included in the set)
- Sample Thickness: Sample Thickness: Less than 18mm / 0.4inch
- Operating conditions: 0~50°C, less 90%RH
- Time of Testing: Maximum of 4 seconds
- Effects from Stray Light: Not Effected by Stray Light
- Light Source: LED
- Measuring Mode: Continous
- Lamp Life: 10 Years
- Weight: 100g (excluding batteries)
- Dimensions:
- Main Unit: 126 x 65 x 27mm
- Sensor: 125 x 38 x 38mm
Set Includes:

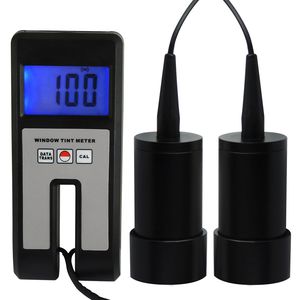

1 x Digital Windows Tint Meter with sensor
1 x English Operation Manual
1 x Calibration Set
Carrying Case
Standard Factory Packaging
