Description
Designed for power seat adjustment in automobiles (Specifically Daewoo)
Left Hand Configuration
Heavy gauge U-bracket on back of gearhead, 1/4" holes with 7mm spacing.
RPM: No-load rating: 180 RPM @ 12Vdc / 1.3A.
Dimensions
Motor: Overall length, 144mm (5.66"); Diameter 49mm (1.91")
Worm Shaft: 12mm diameter is 89mm (3.55") long
Thread: 7/16"-8 (right-hand twist)
The last 12mm of the shaft has a 6 x 1.0 metric thread (Left-hand twist)
Power Termination: Packard 12064750 Connector (3/16" quick-connect terminals); Accepts Packard 12064749 Connector
Manufactured in 2006

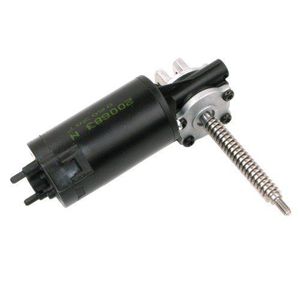

Gear Head DC Motor 12Vdc - Worm Drive Left-Hand Configuration
Current Price
$14.95
Average
$14.95
Min Price
$14.95
Max Price
$14.95
Price dynamics
0%
Description
Designed for power seat adjustment in automobiles (Specifically Daewoo)
Left Hand Configuration
Heavy gauge U-bracket on back of gearhead, 1/4" holes with 7mm spacing.
RPM: No-load rating: 180 RPM @ 12Vdc / 1.3A.
Dimensions
Motor: Overall length, 144mm (5.66"); Diameter 49mm (1.91")
Worm Shaft: 12mm diameter is 89mm (3.55") long
Thread: 7/16"-8 (right-hand twist)
The last 12mm of the shaft has a 6 x 1.0 metric thread (Left-hand twist)
Power Termination: Packard 12064750 Connector (3/16" quick-connect terminals); Accepts Packard 12064749 Connector
Manufactured in 2006
