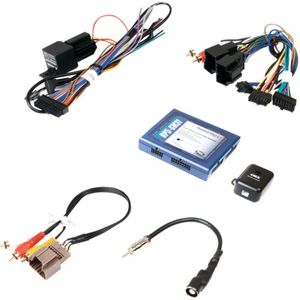

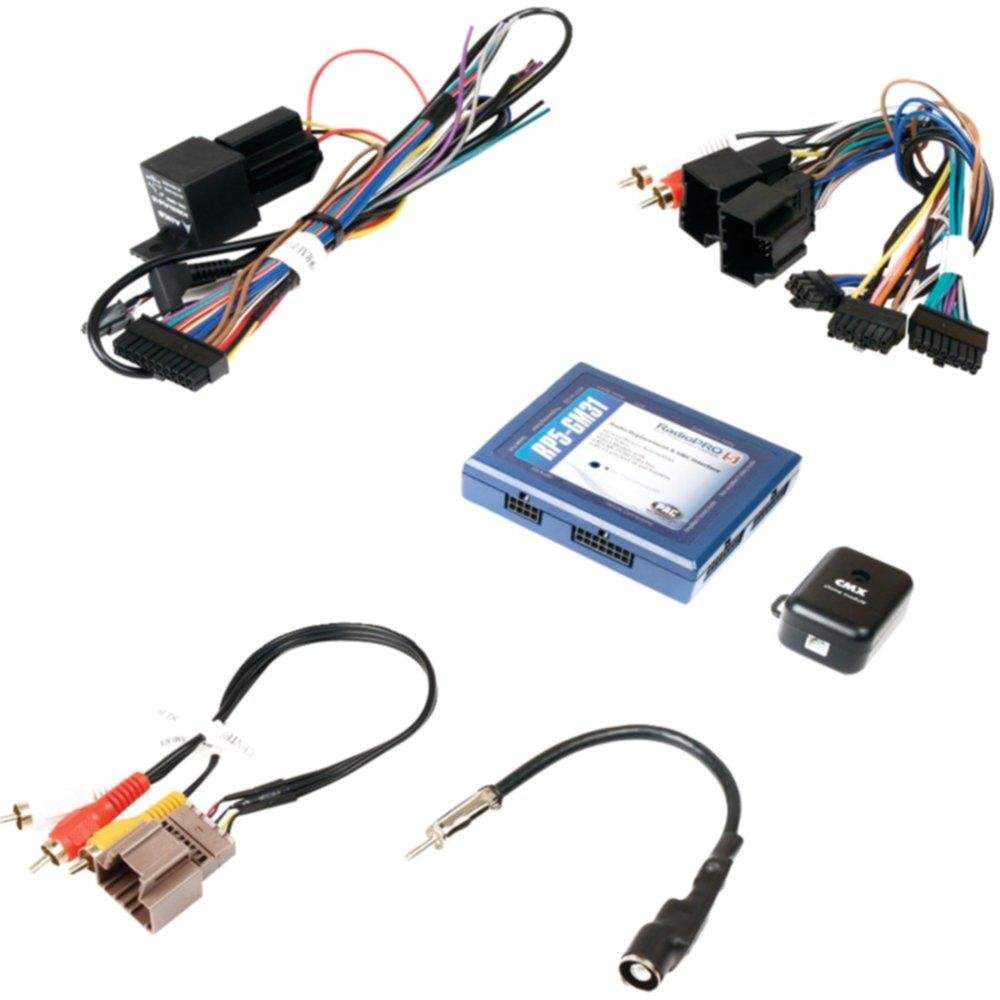

PAC RP5-GM31 All-in-One Radio Replacement & Steering Wheel Control Interface (for Select GM(R) Vehicles with OnStar(R)) consumer electronics

hey guys welcome to the channel today we're gonna show you how to wire up the GR key 5 gm 31 Pacific audio controls modules so if you look right here we have all of the wires ready to go for this pioneer 210 NEX all of the audio wires your white green purple and dark gray are all wired up to the radio connections harness here which is provided in the kit you also have the yellow for constant power the red for a switched power and the black for the ground the neon green and this purple and white wire are completely irrelevant don't forget that orange wire the orange and white is your dimmer switch you can choose to put it in or not at all so the Pacific audio controls they offer this little pigtail here which connects into this module here now what that does is it sends a frequency that a radio to tell you I'm on volume up I want volume down blah blah etc there's a door chime 1 there we
