Description
See other 4.2 inch e-paper:
GDEW042T2: https://www.amazon.com/dp/B078MKTWTB?ref=myi_title_dp
GDEW042C37: https://www.amazon.com/dp/B07CJ451CL?ref=myi_title_dp
https://www.amazon.com/dp/B07MT968P3?ref=myi_title_dp
Introduction

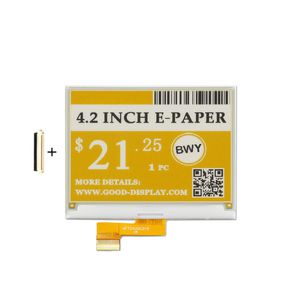

This is an E ink E paper display panel, 4.2 inch, 400x300 resolution, square, 24 pins FPC connection, optional FPC connector, communicating via SPI interface, with embedded controller(COG package) and on-chip stored waveform, supports yellow, black, and white three-color.
In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight, low current deep sleep mode. Also GDEW042C37 can be used in shelf label, smart tags, industrial instrument, smart cards and other related products.
Features
Three colors, black, white and yellow.
400x300 resolution.
SPI interface, for connecting with controller boards.
Come with helpful development resources and manual (STM32 platform).
Available in COG package IC thickness 300um.
Main Parameters
Part Number: GDEW042C37
Screen Size: 4.2 inch
Resolution: 400(H)*300(V)
Outline Size(mm): 91.0(H)*77.0(V)*1.18(D)
Active Size(mm): 84.8(H)*63.6(V)
Pixel Pitch: 0.212*0.212
Pixel Configuration: Square
Weight: 13.76 + 0.5
Color: Black,White,Yellow
The above price includes:
1)4.2'' e ink GDEW042C37 *1pc
2)FPC Connector *1pc
3)Example code and Manual *1pc (If you need documents, please contact customer service)
GDEW042T2: https://www.amazon.com/dp/B078MKTWTB?ref=myi_title_dp
GDEW042C37: https://www.amazon.com/dp/B07CJ451CL?ref=myi_title_dp
https://www.amazon.com/dp/B07MT968P3?ref=myi_title_dp
Introduction
This is an E ink E paper display panel, 4.2 inch, 400x300 resolution, square, 24 pins FPC connection, optional FPC connector, communicating via SPI interface, with embedded controller(COG package) and on-chip stored waveform, supports yellow, black, and white three-color.
In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight, low current deep sleep mode. Also GDEW042C37 can be used in shelf label, smart tags, industrial instrument, smart cards and other related products.
Features
Three colors, black, white and yellow.
400x300 resolution.
SPI interface, for connecting with controller boards.
Come with helpful development resources and manual (STM32 platform).
Available in COG package IC thickness 300um.
Main Parameters
Part Number: GDEW042C37
Screen Size: 4.2 inch
Resolution: 400(H)*300(V)
Outline Size(mm): 91.0(H)*77.0(V)*1.18(D)
Active Size(mm): 84.8(H)*63.6(V)
Pixel Pitch: 0.212*0.212
Pixel Configuration: Square
Weight: 13.76 + 0.5
Color: Black,White,Yellow
The above price includes:
1)4.2'' e ink GDEW042C37 *1pc
2)FPC Connector *1pc
3)Example code and Manual *1pc (If you need documents, please contact customer service)
GooDisplay E-Paper Screen Eink Display Electronic Paper Display Panel Three Colors 4.2 Inch Black Write and Yellow
Price is below average
Current Price
$20.75
Average
$30.88
Min Price
$20.75
Max Price
$35.95
Price dynamics
33%
Description
See other 4.2 inch e-paper:
GDEW042T2: https://www.amazon.com/dp/B078MKTWTB?ref=myi_title_dp
GDEW042C37: https://www.amazon.com/dp/B07CJ451CL?ref=myi_title_dp
https://www.amazon.com/dp/B07MT968P3?ref=myi_title_dp
Introduction
This is an E ink E paper display panel, 4.2 inch, 400x300 resolution, square, 24 pins FPC connection, optional FPC connector, communicating via SPI interface, with embedded controller(COG package) and on-chip stored waveform, supports yellow, black, and white three-color.
In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight, low current deep sleep mode. Also GDEW042C37 can be used in shelf label, smart tags, industrial instrument, smart cards and other related products.
Features
Three colors, black, white and yellow.
400x300 resolution.
SPI interface, for connecting with controller boards.
Come with helpful development resources and manual (STM32 platform).
Available in COG package IC thickness 300um.
Main Parameters
Part Number: GDEW042C37
Screen Size: 4.2 inch
Resolution: 400(H)*300(V)
Outline Size(mm): 91.0(H)*77.0(V)*1.18(D)
Active Size(mm): 84.8(H)*63.6(V)
Pixel Pitch: 0.212*0.212
Pixel Configuration: Square
Weight: 13.76 + 0.5
Color: Black,White,Yellow
The above price includes:
1)4.2'' e ink GDEW042C37 *1pc
2)FPC Connector *1pc
3)Example code and Manual *1pc (If you need documents, please contact customer service)
GDEW042T2: https://www.amazon.com/dp/B078MKTWTB?ref=myi_title_dp
GDEW042C37: https://www.amazon.com/dp/B07CJ451CL?ref=myi_title_dp
https://www.amazon.com/dp/B07MT968P3?ref=myi_title_dp
Introduction
This is an E ink E paper display panel, 4.2 inch, 400x300 resolution, square, 24 pins FPC connection, optional FPC connector, communicating via SPI interface, with embedded controller(COG package) and on-chip stored waveform, supports yellow, black, and white three-color.
In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight, low current deep sleep mode. Also GDEW042C37 can be used in shelf label, smart tags, industrial instrument, smart cards and other related products.
Features
Three colors, black, white and yellow.
400x300 resolution.
SPI interface, for connecting with controller boards.
Come with helpful development resources and manual (STM32 platform).
Available in COG package IC thickness 300um.
Main Parameters
Part Number: GDEW042C37
Screen Size: 4.2 inch
Resolution: 400(H)*300(V)
Outline Size(mm): 91.0(H)*77.0(V)*1.18(D)
Active Size(mm): 84.8(H)*63.6(V)
Pixel Pitch: 0.212*0.212
Pixel Configuration: Square
Weight: 13.76 + 0.5
Color: Black,White,Yellow
The above price includes:
1)4.2'' e ink GDEW042C37 *1pc
2)FPC Connector *1pc
3)Example code and Manual *1pc (If you need documents, please contact customer service)
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
