Description

LEDs in backlights.

No need to disassemble LED TV backlight and other LED applications when you diagnose the defective LEDs.
It can also be used to measure the voltage of different applications, capacitor voltage.

Instructions:
1) Plug the power supply, voltage shows 130V and after few seconds it would rise up to 260V.
2) When testing, use the red and black pen to touch anode and cathode of the LED light respectively. The light will automatically change from slight brightness to high lightness gradually (3-5s) and then stabilized. The voltage display is the operating voltage of the light at that time.

Method without disassembling the screen:
1) Unplug the interface sockets of the constant current plate and light bar;
2) Insert the red and black pens into anode and cathode of the interface of the LED light bar.
3) Turn on the power supply and power the TV up normally (except for the constant current plate); at this time, if the light bar, LCD, mainboard and logic board all work normally, normal images can be seen from the screen. The brightness may be lower than the normal brightness of the original TV set. The output current of the tester shall adapt to the LED backlight bars of all sizes of TV sets, thus the brightness is relatively lower compared to the one-to-one constant current plate of the original TV set, which is a normal phenomenon.

Specifications:
Input Voltage: 85-265V (Internationally Universal)
Output Voltage: 0-260V
Output Current:2mA
Plug type: US/EU Plug
Item Weight: 87g / 3.07oz
Package Weight: 278g / 9.81oz
Item Size: 9.4 * 5.7 * 3.2cm / 3.70 * 2.24 * 1.26in （L * W * H）
Package Size: 20.5 * 11.5 * 4cm / 8.07 * 4.53 * 1.57in （L * W * H)

Package List:
1 * LED Tester
2 * Test Probe
1* US Plug
1 * User Manual

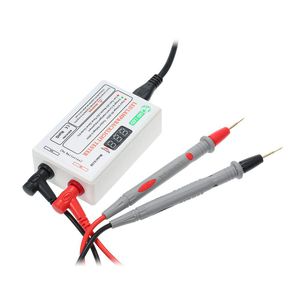

Grborn Smart-Fit LED Lamp LCD TV Backlight Tester for All LED Lights Repair Output 0-260V GJ2B

Get price

Current Price

$23.55

Average

$23.55

Min Price

$23.55

Max Price

$23.55

Description

According to the data, price will be lower in next two weeks, so not waste your money and track better price!

Product review & video

Try all repairs and troubleshooting at your own risk. In this video we will show how to test and LED TV that has no backlights and determine if the backlight problem is being caused by the power board or the LED strips. The first step, if you have no image on the screen is to determine if the TV has backlights that are working or not. The easiest way to see if the backlights are working is to look through the back cover of the TV and plug the TV in and turn the TV on, and see if there is any light coming through the back. This can be difficult sometimes and it may help to turn the lights off to see if there is any light coming through. If you cannot see any light coming through the back cover, then I would recommend removing the back cover. There should be holes in the back panel which is underneath the back cover. Once you have powered on the TV to check if there is light coming throug
