Specifications:

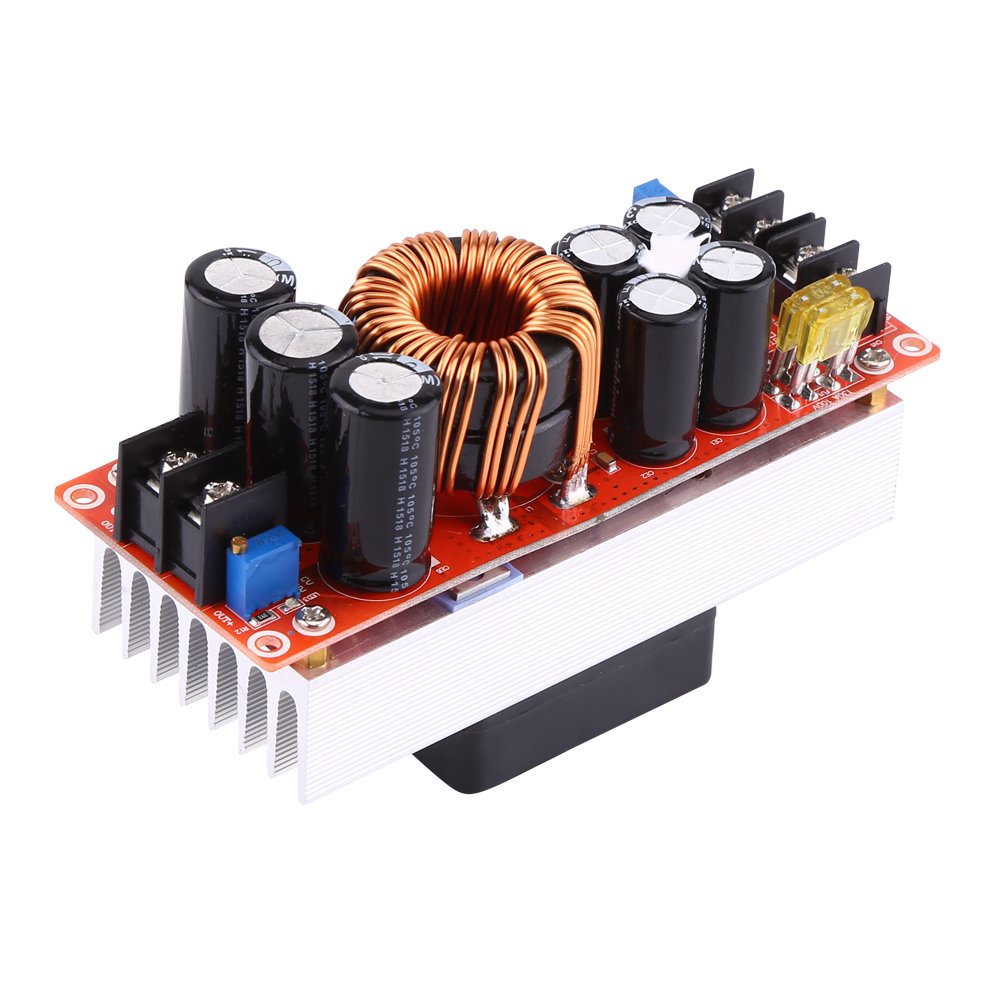

Type: Non-isolated step-up module (BOOST)
Input Voltage: DC10V to 60V
Max. Input Current: 30A
                            25A
Quiescent Current: 15mA
Output Voltage: 12V to 90V
Max. Output Current: 20A
Constant Current Range: 0.8A to 20A(+/-0.3A)
Reverse Input Protection: Yes (150A MOS)
Lower Voltage Protection: Yes (V8 to 50V adjustable, self-recovery)
Operating Temperature: - 40℃ to +85 ℃
Frequency: 150KHz
Conversion Efficiency: 92% to 97%
Input Over-current Protection: Yes
Short Circuit Protection: Yes
Wiring Method: Terminals
Max. Output Power = Input Voltage*Max Current
Size:130 x 84 x 52mm / 5.11 x 3.3 x 2.04"

Note:

1. Output wiring can not be reversed or short circuit.
2, If the module is connected to inductive load, the minimum input voltage should be higher(e.g. 24V) and maximum output power should be lower(e.g. 500W).
3, If a storage battery, switch power supply, solar panel or electric generator is used as input power source, the low voltage protection value should be adjusted lower, otherwise it might cause damage.

Package Includes:

1 x Module
