Function

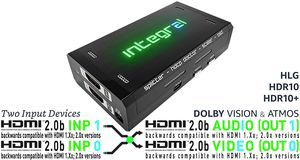

An Integral 2 splits an HDMI AV signal of an input source (it has ‘INP0’ and ‘INP1’ inputs for two devices) and then passes through the multichannel audio to a legacy 4K HDR incapable AVR or a soundbar and the 4K HDR video to a 4K UHD TV or a projector respectively.

AV Splitter Mode

In order to split the AV signal and get the video signal from the ‘OUT0’ output* and the audio signal from the ‘OUT1’ output*, set the ‘SCALE’ slider to ‘auto scaling’ and the ‘EDID’ slider to ‘edid automix mode’.

* Select the appropriate input on the remote controls of the AV receiver and the TV.

HDMI Switch Mode

A short press of the ‘INP’ button switches the active input source (сan be used if both devices are turned on). Turning off one of them might be more convenient.

Hot Plug Detection

A short press of the ‘RST’ button generates the ‘Hot Plug Detection’ (should be used if there is a problem with the identification of input and/or output devices).

Logitech Harmony Compatibility

https://support.myharmony.com/en-us/compatibility

Manufacturer: HDFury

Model Number or Product Name: Integral 2
